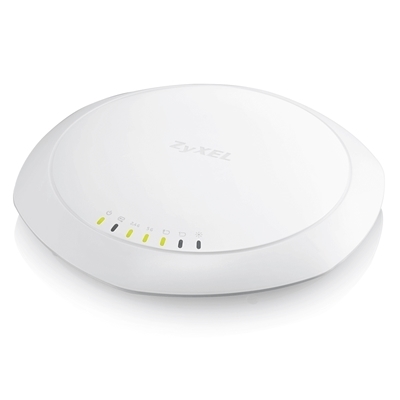

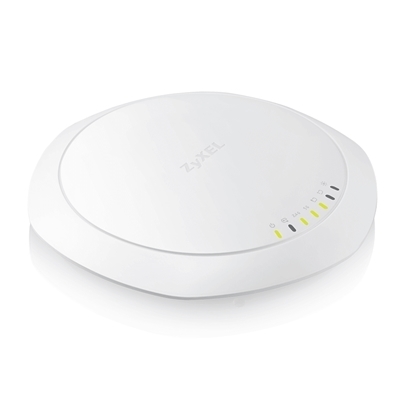

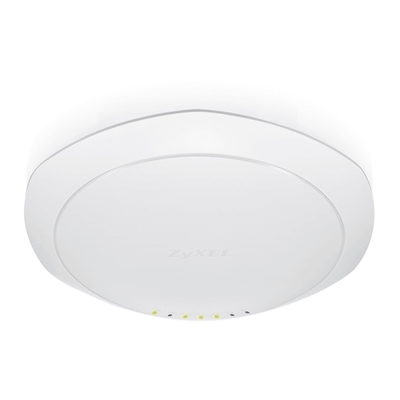

ACCESS POINT WIRELESS ZYXEL NWA1123ACPRO-EU0101F NEBULAFLEX DUAL RADIO 3X3 802.11A/B/G/N/AC 1750MBPS ANT.INTEGRATE-2P LAN-SUPP

Descrizione

ACCESS POINT WIRELESS ZYXEL NWA1123ACPRO-EU0101F NEBULAFLEX DUAL RADIO 3X3 802.11A/B/G/N/AC 1750MBPS ANT.INTEGRATE-2P LAN-SUPP

Main Design
Wireless frequency: 2.4 GHz & 5 GHz
Radio: 2

RF Specifications
Frequency band:
2.4 GHz (802.11 b/g/n)
– USA (FCC): 2.412 to 2.462 GHz
– Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (802.11 a/n/ac)
– USA (FCC): 5.15 to 5.25 GHz; 5.725 to 5.850 GHz
– Europe (ETSI): 5.15 to 5.35 GHz;
– 5.470 to 5.725 GHz
802.11 premium features:
– 3×3 Multiple-Input Multiple-Output (MIMO) with three spatial streams
– Maximal Ratio Combining (MRC)
– 20-, 40- and 80-MHz channels
– PHY data rates total up to 450 Mbps (11n) + 1.3 Gbps (11ac)
– Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
– Cyclic Delay diversity (CSD) support
– Maximum Likelihood Demodulation (MLD) support
– Low Density Parity Check (LDPC) support
Typical transmit output power (dBm):
– US (FCC) 2.4 GHz : 27
– US (FCC) 5 GHz : 27
– EU (ETSI) 2.4 GHz : 18
– EU (ETSI) 5 GHz : 24
Number of antenna: 3T3R MIMO
Antenna gain:
2.4 GHz :
– Ceiling: 3 dBi
– Wall: 4 dBi
5 GHz :
– Ceiling: 4 dBi
– Wall: 5 dBi
Support data rate:
– 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbp
– 802.11n: up to 450 Mbps in MCS15 (40 MHz)
– 802.11ac: up to 1300 Mbps in MCS9 (80 MHz)
Receive sensitivity: Min. Rx sensitivity to -102 dBm

LAN
Number of 10/100/1000M LAN: 2
PoE: Yes
PoE power draw: 12.48 W (802.3at PoE)

WLAN Security
WEP: Yes
WPA/WPA2-PSK: Yes
WPA/WPA2-Enterprise: Yes
EAP type: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
WMM: WiFi compliant
IEEE 802.1X: Yes
Number of multiple SSID: 16
MAC filtering: Yes
L2 Isolation: Yes, multiple profile
RADIUS authentication: Yes

Network
IPv6 support: Yes
VLANs: Yes
DHCP client: Yes

Zyxel One Network
ZON Utility:
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
– IP configuration
– IP renew
– Device reboot
– Device locating
– Web GUI access
– Firmware upgrade
– Password configuration
– One-click quick association with Zyxel AP Configurator (ZAC)

Management
Zyxel AP Configurator:
– Batch AP configuration
– Batch AP firmware upgrade
– Batch AP profile backup
Standalone AP mode: Yes
CLI: Yes, SSH
SNMP: Yes

Others
Plenum rating: Yes
Power supply: 802.3at PoE only (No DC jack)
MTBF (hr): 1,005,235

Standard Compliance
Ethernet:
– IEEE 802.3
– IEEE 802.3u
– IEEE 802.11ab
– IEEE 802.3au
– IEEE 802.3az
– IEEE 802.3at
WLAN:
– 802.11b: DBPSK, DQPSK, CCK
– 802.11g: BPSK, QPSK, 16-QAM, 64-QAM
– 802.11a: BPSK, QPSK, 16-QAM, 64-QAM
– 802.11n: BPSK, QPSK, 16-QAM, 64-QAM
– 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM

Certifications
Radio:
– FCC Part 15C
– FCC Part 15E
– ETSI EN 300 328
– EN 301 893
– LP0002
EMC:
– FCC Part 15B
– EN 301 489-1
– EN 301 489-17
– EN55032
– EN55024
– EN61000-3-2/-3
– BSMI CNS13438
Safety:
– EN 60950-1
– IEC 60950-1
– BSMI CNS14336-1

Physical Specifications and others
Item:
– Dimensions (WxDxH)(mm/in.): 203.9 x 191.7 x 34.7/8.03 x 7.55 x 1.37
– Weight (g/lb.): 445/0.98
Packing:
– Dimensions (WxDxH)(mm/in.): 240 x 235 x 100/9.45 x 9.25 x 3.94
– Weight (g/lb.): 1210/2.67
Included accessories:
– PoE Injector and Ethernet 45 cable (optional)
– Wall/Ceiling-mount plate

Environmental Specifications
Operating:
– Temperature: 0°C to 50°C/32°F to 122°F
– Humidity: 10% to 90% (non-condensing)
Storage:
– Temperature: -40°C to 70°C/-40°F to 158°F
– Humidity: 10% to 90%
