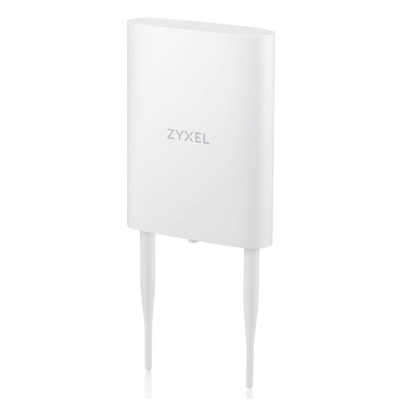

ACCESS POINT WIRELESS ZYXEL NWA55AXE-EU0102F NEBULAFLEX DUAL RADIO 2X2 802.11A/B/G/N/AC/AX 1775MBPS OUTDOOR IP55- SUPP.POE 16W

Descrizione

ACCESS POINT WIRELESS ZYXEL NWA55AXE-EU0102F NEBULAFLEX DUAL RADIO 2X2 802.11A/B/G/N/AC/AX 1775MBPS OUTDOOR IP55- SUPP.POE 16W

Product name
Description: 802.11ax (WiFi 6) Dual-Radio Outdoor PoE Access Point

Wireless
Standard: IEEE802.11 ax/ac/n/g/b/a
MIMO: MU-MIMO
Wireless speed:
– 2.4GHz: 575 Mbps
– 5GHz: 1200 Mbps
Frequency band:
2.4 GHz:
– USA (FCC): 2.412 to 2.462 GHz
– Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
– USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
– European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth: 20-, 40- and 80-MHz
Conducted typical transmit output power:
– US (2.4GHz/5GHz): 23/26 dBm
– EU (2.4GHz/5GHz): 20/25 dBm

RF Design
Antenna type: 2×2 External Antenna
Antenna gain:
– 2.4GHz: 4 dBi
– 5GHz: 5 dBi
Minimum Receive sensitivity: Min. Rx sensitivity up to -99 dBm

WLAN feature
Band Steering: Yes
WDS/Mesh*2: Yes
Fast roaming: Yes
DCS: Yes
Load balancing: No

Security
Encryption:
– WPA Personal
– WPA2 Personal
– WPA3 Personal
Authentication: No
Access management:
– MAC filtering
– Rogue AP detection

Networking
IPv6: Yes
VLANs: Yes
WMM: Yes
U-APSD: Yes

Management
Operating mode:
– Cloud managed
– Standalone
ZON Utility:
– Discovery of Zyxel switches, APs and gateways
– Centralized and batch configurations
– IP configuration
– IP renew
– Device factory reset
– Device reboot
– Device locating
– Web GUI access
– Firmware upgrade
– Password configuration
Zyxel Wireless Optimizer: WiFi AP planning
Web UI/CLI: Yes
SNMP: NO

Physical Specifications
Item:
– Dimensions (WxDxH)(mm/in.): 308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95
– Weight (g/lb.): 580/1.28
Packing:
– Dimensions (WxDxH)(mm/in.): 221 x 188 x 59 / 8.70 x 7.40 x 2.32
– Weight (g/lb.): 887/1.96
Included accessories: PoE injector, Mounting screws
MTBF (hr): 1,091,186

Physical Interfaces
Ethernet port: 1x 10/100/1000M LAN
Power: PoE (802.3at): power draw 16 W

Environmental Specifications
Weather protection: IP55
Operating:
– Temperature: -20°C to 60°C/ -4°F to 140°F
– Humidity: 10% to 90% (non-condensing)
Storage:
– Temperature: -40°C to 70°C/-40°F to 158°F
– Humidity: 10% to 90% (non-condensing)

Certifications
Radio:
– FCC Part 15C
– FCC Part 15E
– ETSI EN 300 328
– EN 301 893
– LP0002
– EN 60601-1-2
EMC:
– FCC Part 15B
– EN 301 489-1
– EN 301 489-17
– EN55022
– EN55024
– EN61000-3-2/-3
– BSMI CNS13438
Safety:
– EN 60950-1
– IEC 60950-1
– BSMI
– CNS14336-1
