ADATTATORE POE INJECTOR TP-LINK POE160S 1P GIGABIT POE, 1P GIGABIT NON POE802.03AT/AF

Descrizione

ADATTATORE POE INJECTOR TP-LINK POE160S 1P GIGABIT POE, 1P GIGABIT NON POE802.03AT/AF

NETWORK
Standard e Protocolli: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

GENERALE
Certificazione: FCC, CE, RoHS
Ambiente:
– Operating Temperature: 0°C to 40°C (32°F to 104°F)
– Storage Temperature: -40°C to 70°C (-40°F to 158°F)
– Operating Humidity: 10% to 90%RH non-condensing
– Storage Humidity: 5% to 90%RH non-condensing

PACKAGE CONTENTS
Package Contents:
– PoE+ Injector TL-POE160S
– Installation Guide
– Power Cord
– RJ45 Cable
– Wall Mounting Kits

CARATTERISTICHE HARDWARE
Media:
– 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
– EIA/TIA-568 100Ω STP (maximum 100 m)
– 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
– EIA/TIA-568 100Ω STP (maximum 100 m)
– 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

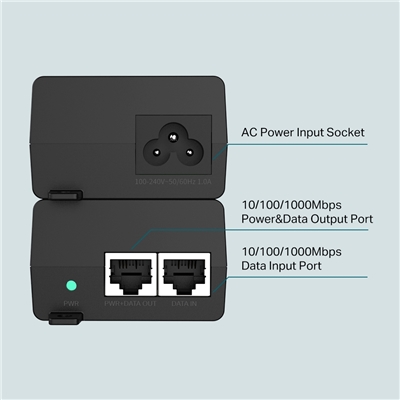

Ports:
– 1 10/100/1000Mbps RJ45 data-in port
– 1 10/100/1000Mbps RJ45 power+data-out port
– 1 AC socket
Consumo energetico:
– Input: 100-240 V, 50/60 Hz
– Output: Auto-determine the necessary power requirements (max. 30 W)
Utilizzo principale:
– Auto-Sensing Algorithm enables providing power with 802.3af/at PD
– Auto-determine the necessary power requirements
– Wall-mounting and desktop installation supported
– Plug-and-Play
Indicatore LED:
– ON: Supplying power normally
– OFF: No power supply
Dimensioni ( L x P x A ): 4.9*2.3*1.4 in (125*59.4*36.8 mm)
