Descrizione

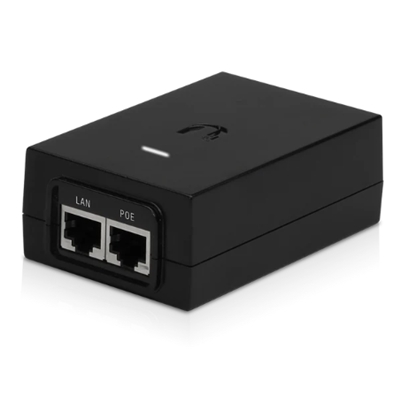

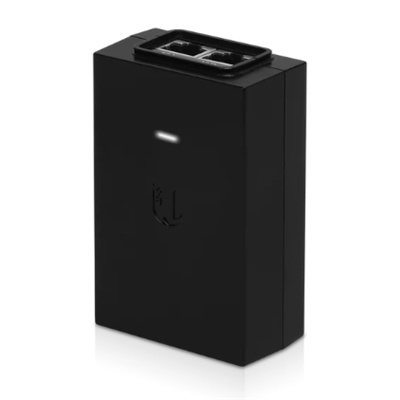

ADATTATORE POE UBIQUITI POE-24-24W INJECTOR-2P LAN RJ45 – 24V – CONFORMI ALLE DIRETTIVE DEL MINISTERO DELLE COMUNICAZIONI
Model: POE-24-24W
Dimensions: 88 x 57 x 33 mm (3.47 x 2.24 x 1.30″)
Weight: 135 g (4.76 oz)
Output Voltage: 24VDC @ 1.0A
LAN Activity Indicator: No
Gigabit LAN Port: No
Remote Reset Capability: Yes
Reset Button: Yes
Rated Voltage: 100-240VAC @ 50/60Hz
Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: ≤ 3%
Load Regulation: ≤ 5%
2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering: –
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70° C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / PoE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 μs) Power
Peak Pulse Current: 36A (10/1000 μs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Certifications: CE, FCC, IC, UL
