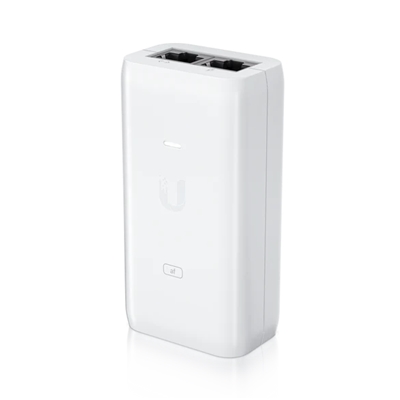

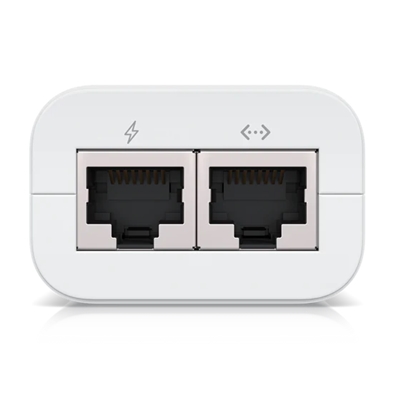

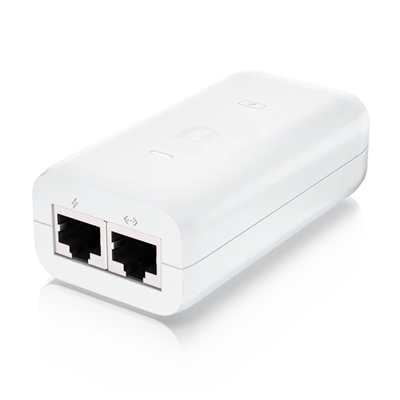

ADATTATORE POE UBIQUITI POE-50-60W 50V/1.2A(60W) PER AIRFIBER

Descrizione

ADATTATORE POE UBIQUITI POE-50-60W 50V/1.2A(60W) PER AIRFIBER
Model: POE-50-60W
Dimensions: 101 x 60 x 33 mm (3.98 x 2.36 x 1.30”)
Weight: 192 g (6.77 oz)
Output voltage: 50VDC @ 1.2A
LAN activity indicator: No
Gigabit LAN port: Yes
Remote reset capability: No
Reset button: No
Rated voltage: 100—240V AC @ 50/60Hz
Input current: 1.3A @ 120V AC, 0.75A @ 230V AC
Inrush current: <100A peak @120V AC, <200A peak @ 230V AC
Efficiency: 85+%
Output ripple: 1% max.
Switching frequency: 65 kHz
Line regulation: ≤ 3%
Load regulation: ≤ 5%
2-pair powering: No
4-pair powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC connector: IEC-320 C6
Data In / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge discharge: 1500A (8/20 μs) power
Peak pulse current: 36A (10/1000 μs) data
Shunt capacitance: <5 pF data
Response time: <1 ns
Operating temperature: 0 to 40° C (32 to 104° F)
Storage temperature: -30 to 70°C (-22 to 158° F)
Operating humidity: 35 to 90% noncondensing
Certifications: CE, FCC, IC, UL
