Descrizione

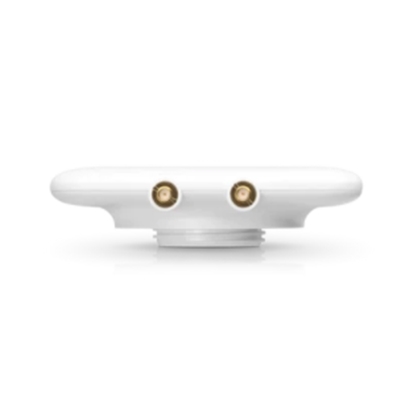

ANTENNA DI RETE DIREZIONALE A DOPPIA BANDA UBIQUITI UMA-D HIGH EFFICIENCY
Dimensions: 201.3x128x32.5 mm
Weight: 400g without mount, 480g with mount
Enclosure Characteristics: Outdoor UV Stabilized Plastic
RF Connections: (2) RP-SMA
Supported Frequency Range: 2.4-2.5GHz, 5.1-5.9GHz
HPOL Beamwidth:
– 2.4 Ghz: 90°
– 5 GHz: 45°
VPOL Beamwidth:
– 2.4 GHz: 90°
– 5 GHz: 45°
Elevation Beamwidth:
– 2.4 GHz: 90°
– 5 GHz: 45°
Maximum VSWR: 2:1
Polarization: Dual-Linear
Cross-Pol Isolation:
– 2.4 GHz: 25 dB
– 5 GHz: 30 dB
Antenna Gain:
– 2.4 GHz: 10 dBi
– 5 GHz: 15 dBi
