Descrizione

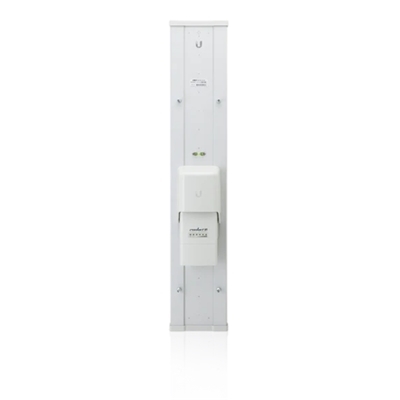

ANTENNA UBIQUITI AM-5G20-90 AIRMAX 2X2 DOPPIA POLAR.MIMO 20DBI 5GHZ 90°
Dimensions (mm): 700 x 135 x 70
Weight: 5.9 kg
Frequency Range: 5.15 – 5.85 GHz
Gain: 19.4 – 20.3 dBi
HPOL Beamwidth: 91° (6 dB)
VPOL Beamwidth: 85° (6 dB)
Electrical Beamwidth: 4°
Electrical Downtilt: 2°
Max. VSWR: 1.5:1
Wind Survivability: 125 mph
Wind Loading: 26 lbf @ 100 mph
Polarization: Dual-Linear
Cross-pol Isolation: 28 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
