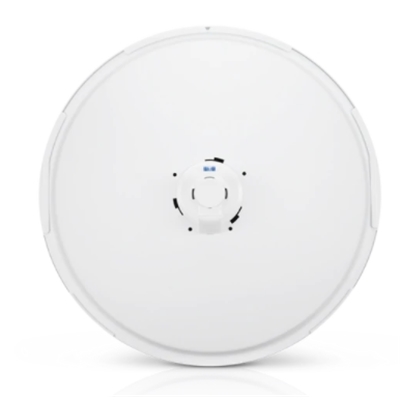

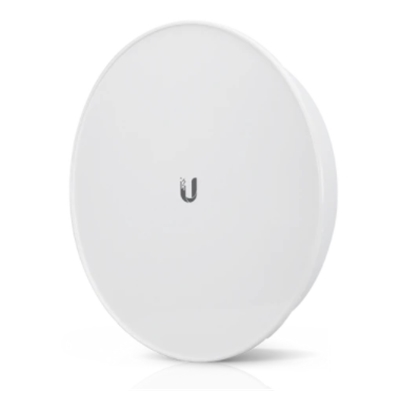

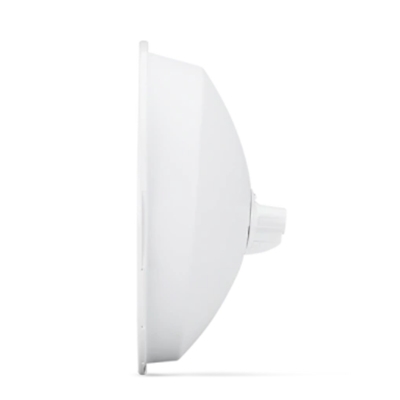

ANTENNA UBIQUITI PBE-5AC-ISO-GEN2 POWERBEAM AC GEN2 400MM ISO

Descrizione

ANTENNA UBIQUITI PBE-5AC-ISO-GEN2 POWERBEAM AC GEN2 400MM ISO

Mechanical
Dimensions: 420 x 420 x 230 mm (16.54 x 16.54 x 9.06″)
Weight: 2.22 kg (4.89 lbs)
Enclosure Materials: Outdoor UV-Stabilized Plastic, Powder-Coated SPCC
Mounting: Pole-Mounting Kit (Included)
Wind Loading: 380 N at 200 km/h (85.4 lbf at 125 mph)
Wind Survivability: 200 km/h (125 mph)

Hardware
Networking Interface: (1) 10/100/1000 Ethernet Port
Processor: MIPS 74Kc
Memory: 64 MB
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption: 8.5W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 20 to 26VDC
Gain: 25 dBi
LEDs: Power, Ethernet, (4) Signal Strength
Channel Sizes:
– PtP Mode: 10/20/30/40/50/60/80 MHz
– PtMP Mode: 10/20/30/40 MHz
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
RoHS Compliance: Yes
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 – 95% Noncondensing
Certifications: CE, FCC, IC

Operating Frequency (MHz)
Worldwide: 5150 – 5875
USA:
– U-NII-1: 5150 – 5250
– U-NII-2A: 5250 – 5350
– U-NII-2C: 5470 – 5725
– U-NII-3: 5725 – 5850

Management Radio (MHz)
Worldwide: 2412 – 2472
USA: 2412 – 2462
