Descrizione

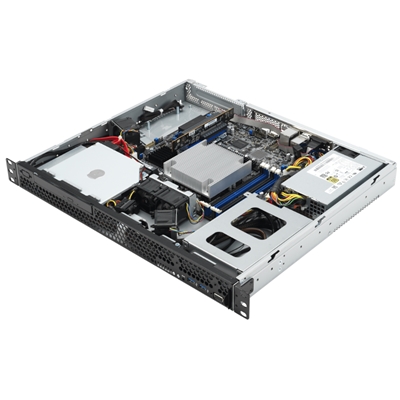

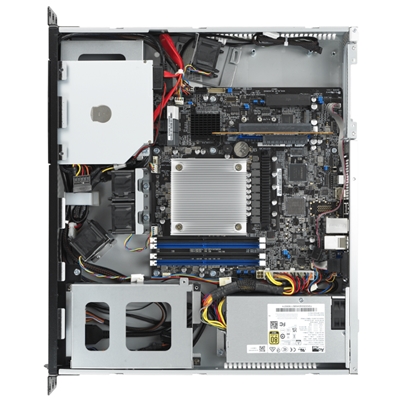

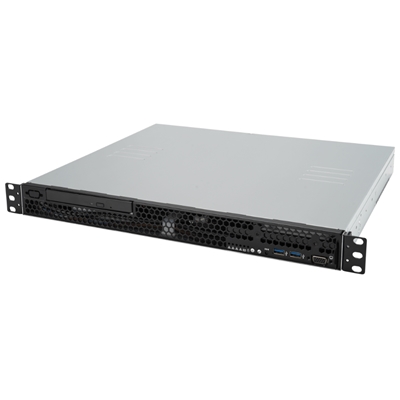

BAREBONE SERVER ASUS 1U RS100-E11-PI2/350W 1XLGA1200 4XDDR4 ECC MAX128GB 4XSSD2.5 1XM.2 RAID 0,1,5,10 NO OPTICAL DISK (NOODD) 2XGLAN VGA 350W
Processor / System Bus
1 x Socket LGA1200
Generation
E11
Core Logic
Intel® C252 Chipset
Memory
Total Slots: 4 (2-channel)
Capacity: Maximum up to 128GB UDIMM
Memory Type: DDR4 3200/2933/2666 UDIMM
Memory Size: 32GB, 16GB, 8GB, 4GB UDIMM
Expansion Slots
Up to 2 slots:
– 1 x PCIe x16 (Gen4 x16 link)
– 1 x PCIe x8 (avaialble only for NVMe riser)
Proprietary Slot (R/A): Option for Intel X710 10G LAN card
Storage
SATA Controller:
– Intel® C252 Chipset
– 2 x Internal 3.5” HDD
– Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1/5/10)
HDD Bays
with ODD: up to 2 x3.5″ disk bay or option 1×3.5″+2×2.5″ (optional NVMe) disk bay
Without ODD: up to 2 x3.5″ disk bay or option 1×3.5″+4×2.5“(optional 2 NVMe) disk bay
support 1 x M.2 (up to type 2280, PCIe 3.0 x4)
Auxiliary Storage FDD/CD/DVD
1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD-ROM
Networking
2 x Intel® I210AT + 1 x Mgmt LAN
Graphic
Aspeed AST2600 with 64MB VRAM
Front I/O Ports
1 x VGA port
2 x USB 3.2 Gen1 ports
Rear I/O Ports
2 x USB 3.2 Gen 2 ports
1 x VGA port
1 x HDMI port from CPU
1 x COM port
2 x RJ-45 ports
1 x RJ-45 ports (One for ASMB10-iKVM)(Optional)
Switch/LED
Rear Switch/LED:
– 1 x Q-Code/Port 80 LED
– 1 x Power switch
Front Switch/LED:
– 1 x Power switch/LED
– 1 x Location switch/LED
– 1 x Reset switch
– 1 x HDD Access LED
– 1 x Message LED
– LAN 1-2 LED
Management Solution
ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet
Regulatory Compliance
BSMI, CE, FCC (Class A)
Dimensions
380mm x 430mm x 44mm
14.96″ x 16.93″ x 1.73″
Form Factor
1U
Weight
Net Weight: 7.5 Kg
Gross Weight: 11.72 Kg
Power Supply
Single 350W 80 PLUS Gold
Environment
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
