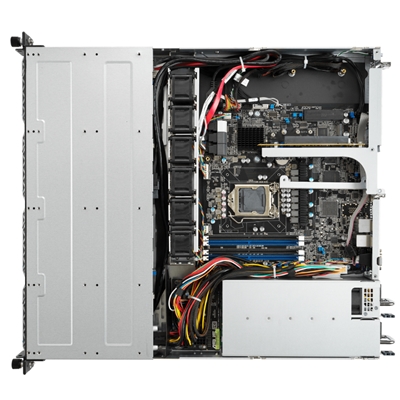

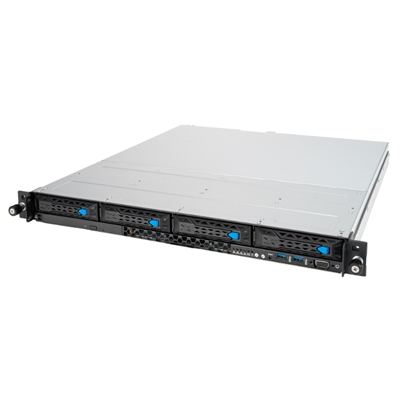

BAREBONE SERVER ASUS 1U RS300-E11-RS4 1XLGA1200 4XDDR4 ECC MAX128GB 4HD/HS 6XSATA3 1XM.2 RAID 0,1,5,10 2XGLAN VGA 1+1 450W RED.

Descrizione

BAREBONE SERVER ASUS 1U RS300-E11-RS4 1XLGA1200 4XDDR4 ECC MAX128GB 4HD/HS 6XSATA3 1XM.2 RAID 0,1,5,10 2XGLAN VGA 1+1 450W RED.

Processor / System Bus
1 x Socket LGA1200
Intel® Xeon® processor E-2300 family
Intel® Pentium™ processors

Generation
E11

Core Logic
Intel® C252 Chipset

Memory
Total Slots: 4 (2-channel)
Capacity: Maximum up to 128GB UDIMM
Memory Type: DDR4 3200/2933/2666 UDIMM
Memory Size: 32GB, 16GB, 8GB, 4GB UDIMM

Expansion Slots
Total PCI/PCI-X/PCI-E/PIKE Slots: 3
1 x PCI-E x 16 (Gen4 x16 Link, switch to x8 link when slot B occupied), FH/HL
1 x PCI-E x 8 (Gen4 x8 Link), HH/HL*
1 x PCI-E x 4 (Gen3 x4 Link), Proprietary R/A slot
(optional for Intel X710 10G LAN card)
* not available when supporting NVME SSD

Storage
Storage Controller:
– Intel® C252 Chipset
– 6 x SATA3 6Gb/s ports
– Intel®VROC (For Linux/Windows)
– (Support Software RAID 0/1/5/10 )
SAS Controller:
– ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
– ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

HDD Bays
4 x 3.5” Hot-Swap HDD Bays
-up to (2*SATA/SAS/NVMe + 2*SATA/SAS)
*SAS support only from optional SAS HBA/RAID card
*NVMe support only from optional NVMe upgrade kit

Auxiliary Storage FDD/CD/DVD
1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD-ROM

Networking
2 x Intel® I210AT + 1 x Mgmt LAN

Graphic
Aspeed AST2600 with 64MB VRAM

Front I/O Ports
– 1 x VGA port*
– 2 x USB 3.2 Gen1 ports
*Must support by ASMB10

Rear I/O Ports
– 2 x USB 3.2 Gen 2 ports
– 1 x VGA port *
– 1 x HDMI port from CPU
– 1 x COM port
– 2 x RJ-45 ports
– 1 x RJ-45 ports (One for ASMB10-iKVM)(Optional)
*Must support by ASMB10

Switch/LED
Rear Switch/LED:
– 1 x Q-Code/Port 80 LED
– 1 x Power switch
Front Switch/LED:
– 1 x Power switch/LED
– 1 x Location switch/LED
– 1 x Reset switch
– 1 x HDD Access LED
– 1 x Message LED
– LAN 1-2 LED

Management Solution
ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet

Regulatory Compliance
BSMI, CE, FCC(Class A)

Dimensions
497mm x 439.5mm x 44mm

Form Factor
1U

Weight
15.2

Power Supply
1+1 Redundant 450W 80 PLUS PLATINUM Power Supply

Environment
Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
