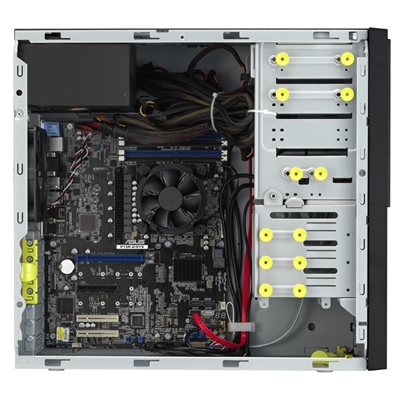

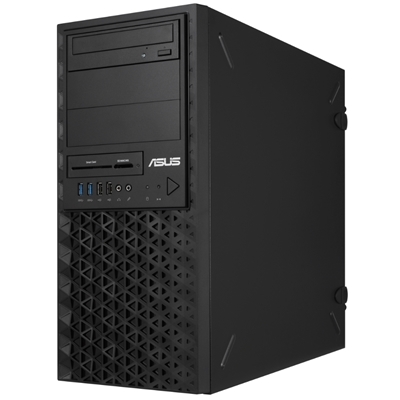

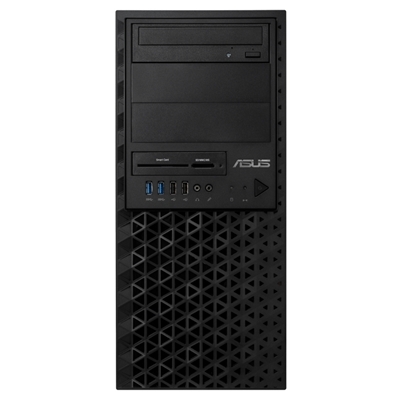

BAREBONE SERVER ASUS 4U TS100-E11-PI4 1XLGA1200 4XDDR4 ECC MAX128GB 3HD/3.5 8XSATA3 2XM.2 RAID 0,1,5,10 2XGLAN VGA 300W 80+ BRO

Descrizione

BAREBONE SERVER ASUS 4U TS100-E11-PI4 1XLGA1200 4XDDR4 ECC MAX128GB 3HD/3.5 8XSATA3 2XM.2 RAID 0,1,5,10 2XGLAN VGA 300W 80+ BRO

Processor / System Bus
1 x Socket LGA1200
Intel® Xeon® processor E-2300 family (95W)
Intel® Pentium Processors

Core Logic
Intel® C256 Chipset

Memory
Total Slots: 4 (2-channel)
Capacity: Maximum up to 128GB UDIMM
Memory Type: DDR4 3200  ECC UDIMM
Memory Size: 32GB, 16GB, 8GB

Expansion Slots
Total: 4
2 x PCI-E x4 slot, x8 Gen3 Link
1 x PCI-E x8 slot, x8 Gen4 Link
1 x PCI-E x16 slot, x16 Gen4 Link
(Auto switch to x8 link if slot 4 is occupied)

Storage
SATA Controller:
Intel® C256 Chipset
8 x SATA3 6Gb/s ports

Drive Bays
3 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays
1 x Internal 2.5″ drive bay
2 x M.2 (Up to 22110)
Gen4 x4 Link and Gen3 x2 Link
gray SATA port will disable when M.2 is SATA signal

Auxiliary Storage FDD/CD/DVD
2 x 5.25″ media bays
(Options: No ODD/DVD-RW)

Networking
2 x Intel® I210AT + 1 x Mgmt LAN

Front I/O Ports
2 x USB 3.2 Gen1
2 x USB 2.0
1 x Headphone port
1 x Microphone port

Rear I/O Ports
2 x USB 3.2 Gen2 ports
2 x USB 3.2 Gen1 ports
1 x VGA port (support by ASMB10)
1 x HDMI port from CPU (useable only with iGPU)
2 x LAN Ports
1 x PS/2 Keyboard/ Mouse Port

Switch/LED
Front:
– 1 x Power Switch/LED
– 1 x Reset Switch
– 1 x HDD Access LED

Management Solution
Bundle ASMB10-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)

Regulatory Compliance
BSMI, CE, FCC (Class B)

Dimensions
423mm x 190mm x 435mm
16.65″ x 7.48″ x 17.1″

Weight
Net Weight: 11.56 KG
Gross Weight: 14.68 KG

Power Supply
300W 80PLUS Single Power Supply, Bronze
Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I

Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
