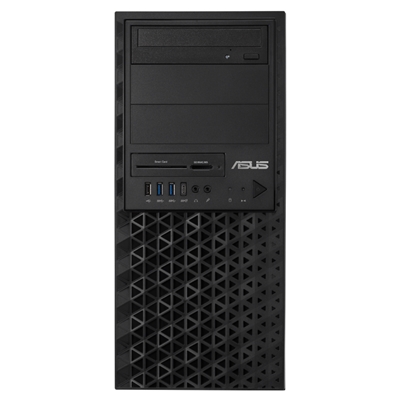

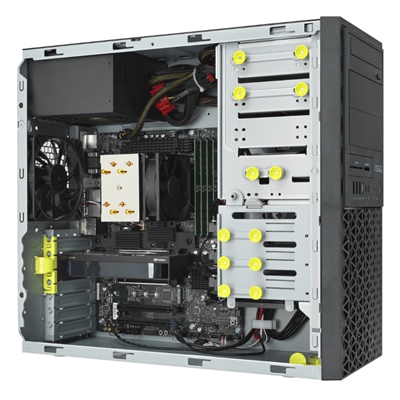

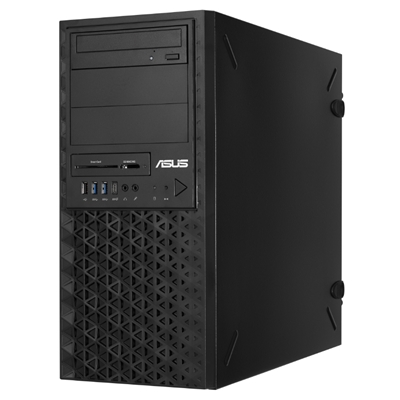

BAREBONE WKS ASUS 4U E500 G9/550W LGA1700 W680 4DDR5 ECC MAX128GB 8SATA3-R 2M.2 4PCIEX16 DVDRW 2X2.5GLAN 550W 80+ GOLD

Descrizione

BAREBONE WKS ASUS 4U E500 G9/550W LGA1700 W680 4DDR5 ECC MAX128GB 8SATA3-R 2M.2 4PCIEX16 DVDRW 2X2.5GLAN 550W 80+ GOLD

Processor / System Bus
1 x Socket LGA1700
Intel® 12th generation Intel® Core™ i9/i7/i5/i3 processors

Core Logic
Intel® W680 Chipset

Memory
Total Slots: 4 (2-channel)
Capacity: Maximum up to 128GB UDIMM
Memory Type: Dual Channel DDR5 4400/3600 MHz, ECC/non-ECC UDIMM
Memory Size: 32GB, 16GB, 8GB UDIMM

Expansion Slots
Total: 5
Location-1: PCIe x16 slots (Gen5 x16/x8 link, FH, FL)
Location-2: PCIe x1 slots (Gen3 x1 link, FH, FL)
Location-3: PCIe x16 slots (Gen5 x0/x8 link, FH, FL)
Location-5: PCIe x16 slots (Gen4 x4 link, FH, FL)
Location-6: PCIe x16 slots (Gen3 x4 link, FH, FL)

Storage
Storage Controller: 8 x SATA3 6Gb/s ports
Intel® Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0, 1, 5, 10)
1 x M.2_1 socket3, up to 2280 type (PCIe Gen4 x4 link), from CPU
1 x M.2_2 socket3, up to 2280 type (PCIe Gen3 x4 link), from PCH
1 x M.2_3 socket3, up to 22110 type (PCIe Gen4 x4 link), from PCH

Drive Bays
3 x internal 3.5” Drive bays
1 x Internal 2.5″ Drive bay

Auxiliary Storage FDD/CD/DVD
2 x 5.25″ media bays
(Options: No ODD/DVD-RW)

Networking
2 x Intel® I225-LM 2.5GbE LAN

Graphic
Up to 1 GPU Card

Front I/O Ports
1 x USB 3.2 Gen2x2 port
2 x USB 3.2 Gen1 ports
1 x USB 2.0 port
1 x Headphone port
1 x Microphone port

Rear I/O Ports
2 x USB 3.2 Gen2 ports (1 port at Type A, 1 port at Type C)
4 x USB 3.2 Gen1 ports
1 x HDMI
1 x DisplayPort
1 x DVI-D
1 x VGA
2 x LAN ports (RJ45)
1 x 7.1-channel Audio I/O ports (5+1 Audio jacks)

Switch/LED
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED

Management Solution
ASUS Control Center support

Regulatory Compliance
BSMI, CE, FCC, Energy Star

Dimensions
423mm x 190mm x 435mm
16.7″ x 7.48″ x 17.1″

Weight
Net Weight: 9.9 KG
Gross Weight: 12.1 KG

Power Supply
550W Gold ATX Power Supply (100-240Vac, 9-4.5A, 50-60Hz,)

Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
