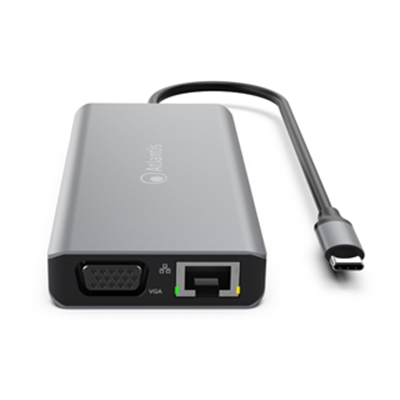

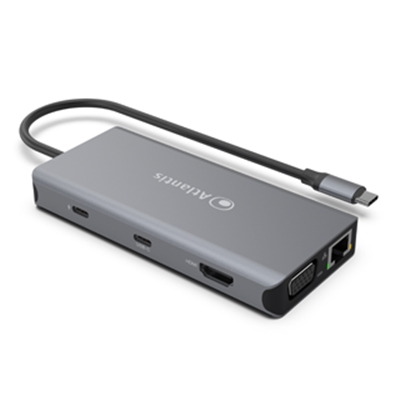

DOCKING STATION TYPE_C ATLANTIS A04-TC_DK46 HDMI2.0 SUP.4K+VGA+LAN GIGABIT+3XUSB3.0+1X TYPE_C USB3.0+ 1XTYPE_C PD V3.0

Descrizione

DOCKING STATION TYPE_C ATLANTIS A04-TC_DK46 HDMI2.0 SUP.4K+VGA+LAN GIGABIT+3XUSB3.0+1X TYPE_C USB3.0+ 1XTYPE_C PD V3.0

– Docking Station Type-C con 1 porta (1920 x 1080 @ 60Hz) e 1 porta HDMI 4K @ 60Hz
– Integra 3 porte USB trazionali 3.0 e 2 porte Type-C: 1 con supporto per la ricarica del notebook PD v.3.0 (max 100W) e 1 Type-C 3.0 (USB 3.2 Gen 1)
– Rete LAN Gigabit 10/100/1000 integrata
– Porta Audio Combo In/Out integrata
– Card reader All-In-One per schede SD/TF/Micro SD
– Supporta lo standard USB-C Alt Mode for DP, i protocolli Wake On-Lan, il booth da PXE ed il Mac address passthrough

PD Power: PD 3.0
PD port: 1x PD port Type-C
Audio: 1x 3.5mm Combo In+Out
HDMI: 1x HDMI 2.0 with HDR and HDCP 2.2
HDMI Resolution: 4K @ 60Hz or 1080p @ 60hz
VGA: 1x 1080p @ 60hz
USB-C: 1x USB 3.0 (USB 3.2 Gen 1)
USB-A: 3x USB 3.0 (USB 3.2 Gen 1)
Ethernet: 1x Gigabit
Card Reader: SD/TF/Micro SD
Output Power: 85W max
Input Power: 100W max
Dimension: 120 x 56 x 16,5 mm
Weight: ~96g
Type-C cable: 18cm with L type connector
Extra Features:
– USB-C Alt-Mode (for DP)
– MAC Address passthrough
– PXE booth
– Wake-On-LAN
