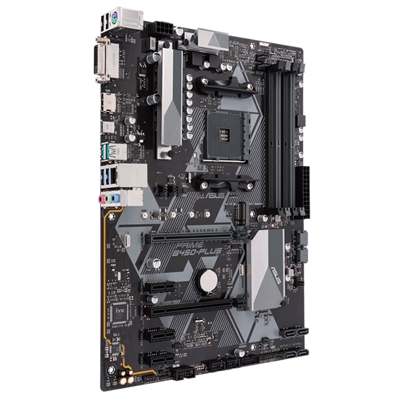

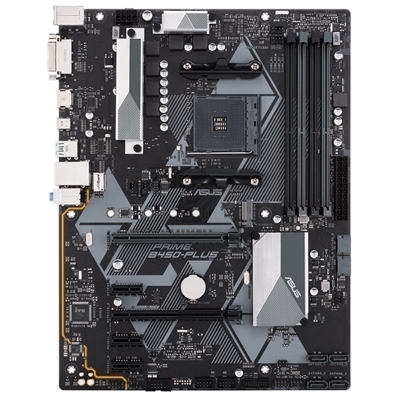

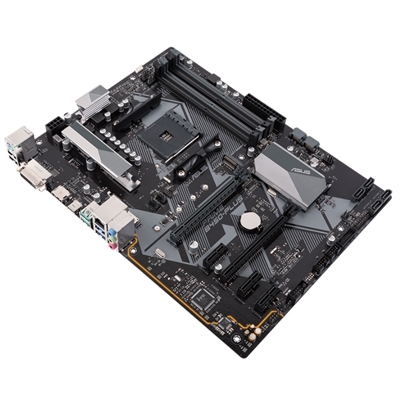

MB ASUS PRIME B450-PLUS LGA AM4 B450 4XDDR4DC-3200O.C. 1XPCIE3.0X16 VGA 6XSATA3RAID M.2 GBLAN USB3.1 ATX 90MB0YN0-M0EAY0

Descrizione

MB ASUS PRIME B450-PLUS LGA AM4 B450 4XDDR4DC-3200O.C. 1XPCIE3.0X16 VGA 6XSATA3RAID M.2 GBLAN USB3.1 ATX 90MB0YN0-M0EAY0

CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Chipset
AMD B450

Memory
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D ports
Supports HDMI 2.0b with maximum resolution of 4096  x 2160 60  Hz
Supports DVI-D with max. resolution 1920  x 1200 60 Hz

Multi-GPU Support
Supports AMD CrossFireX™ Technology

Expansion Slots
3rd/2nd/1st Gen AMD Ryzen™ Processors:
– 1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors:
– 1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors:
– 1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD B450 chipset:
– 1 x PCIe 2.0 x16 (max at x4 mode)
– 3 x PCIe 2.0 x1

Storage
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics:
– 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors:
– 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors:
– 2 x SATA 6Gb/s port(s)
AMD B450 chipset:
– 4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

LAN
Realtek® RTL8111H
ASUS LAN Guard

Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
Audio Feature:
– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors:
– 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors:
– 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
AMD B450 chipset:
– 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
AMD B450 chipset:
– 2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset:
– 6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board)

Special Features
ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– PC Cleaner
– File Transfer
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution & MOS Heatsink
– ASUS Fan Xpert 4 Core
ASUS EZ DIY:
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
– ASUS Q-Slot
– ASUS Q-DIMM
Overclocking Protection:
– ASUS C.P.R.(CPU Parameter Recall)

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

Accessories
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WOL by PME, PXE

Operating System
Windows® 10 64-bit
Windows® 7 64-bit

Form Factor
ATX Form Factor
12.0  inch x 9.2  inch (30.5  cm x 23.4  cm)
