Descrizione

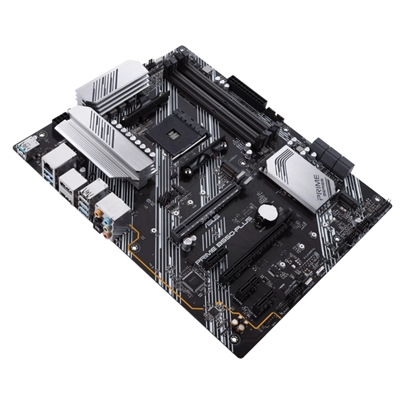

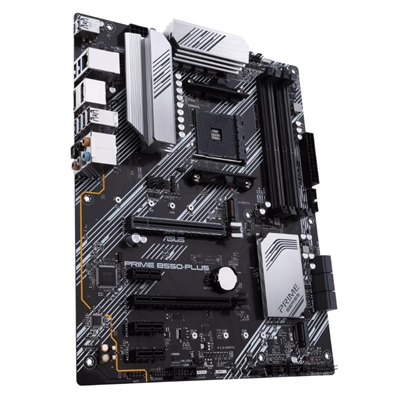

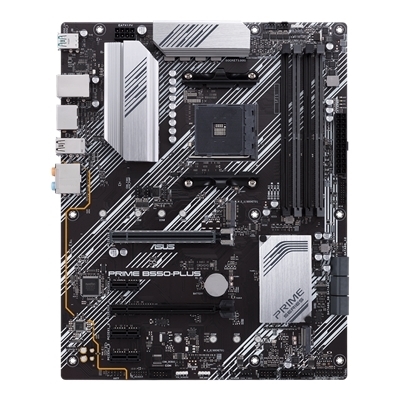

MB ASUS PRIME B550-PLUS B550 AM4 4XDDR4-4600O.C. 1XPCIE4.0X16 HDMI-2.1 DP 6XSATA3R M.2 GBLAN ATX 90MB14U0-M0EAY0
CPU
Built in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Chipset
AMD B550
Memoria
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Grafica
1 x DisplayPort 1.2
1 x HDMI 2.1 (4K 60HZ)
Supporto Multi-GPU
Supports AMD 2-Way CrossFireX Technology
Slot di Espansione
3rd Gen AMD Ryzen™ Processors:
– 1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset:
– 1 x PCIe 3.0 x16 (x4 mode)
– 3 x PCIe 3.0 x1
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors:
– 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset:
– 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
– 6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Realtek® RTL8111H
ASUS LANGuard
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature:
– Optical S/PDIF out port(s) at back panel
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
– Unique de-pop circuit
Porte USB
Rear USB Port (Total 8):
– 2 x USB 3.2 Gen 2 port(s) (1 x Type-A +1 x USB Type-C®)
– 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
– 2 x USB 2.0 port(s) (2 x Type-A)
Front USB Port (Total 6):
– 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
– 4 x USB 2.0 port(s) (4 x Type-A)
Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
ASUS EZ DIY
– SafeSlot
AURA Sync
– Standard RGB headers
– Addressable Gen 2 RGB header
Porte I/O Posteriori
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
I/O Interne
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
Accessori
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Gestibilità
WOL by PME, PXE
Sistema Operativo
Windows® 10 64-bit
Dimensioni Scheda
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
