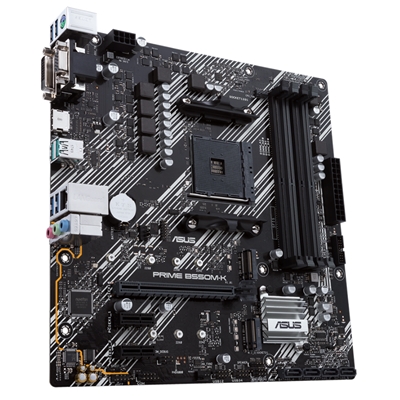

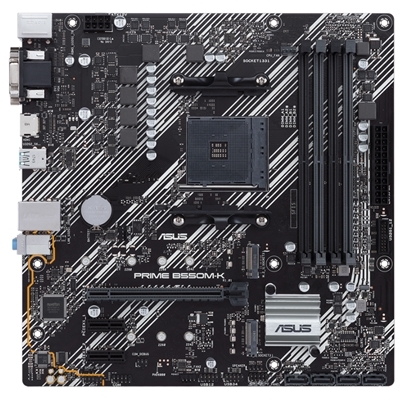

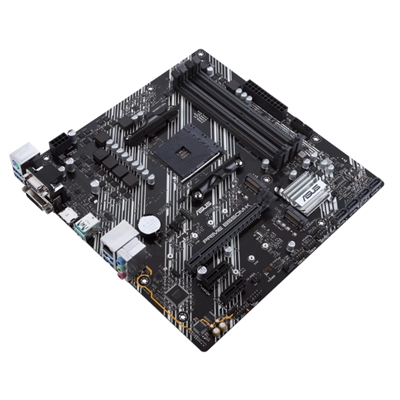

MB ASUS PRIME B550M-K B550 AM4 4XDDR4-4600O.C. 1XPCIE4.0X16 HDMI-2.1 DVI-D D-SUB 4XSATA3R M.2 GBLAN MATX 90MB14V0-M0E FINO:01/03

Descrizione

MB ASUS PRIME B550M-K B550 AM4 4XDDR4-4600O.C. 1XPCIE4.0X16 HDMI-2.1 DVI-D D-SUB 4XSATA3R M.2 GBLAN MATX 90MB14V0-M0E

CPU
Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors

Chipset
AMD B550

Memoria
3rd Gen AMD Ryzen™ Processors:
– 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors:
– 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Grafica
1  x D-Sub
1  x DVI-D
1  x HDMI 2.1 (4K 60Hz)

Slot di Espansione
3rd Gen AMD Ryzen™ Processors:
– 1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors:
– 1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset:
– 2 x PCIe 3.0 x1

Storage
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors:
– 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors:
– 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset:
– 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

LAN
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard

Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature:
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors

Porte USB
Rear USB Port (Total 6):
– 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
– 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port (Total 6):
– 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
– 4 x USB 2.0 port(s)(4 x Type-A)

Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

ASUS Special Features
ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot Core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
ASUS Lighting Control

Porte I/O Posteriori
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)

I/O Interne
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

Accessori
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Gestibilità
WOL by PME, PXE

Sistema Operativo
Windows® 10 64-bit

Dimensioni Scheda
mATX Form Factor
9.6  inch x 9.6  inch (24.4  cm x 24.4  cm)
