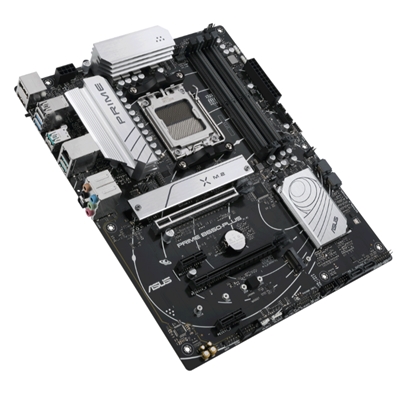

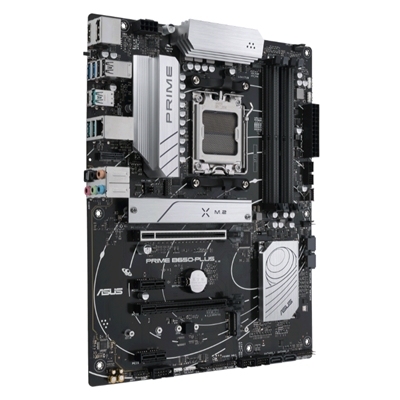

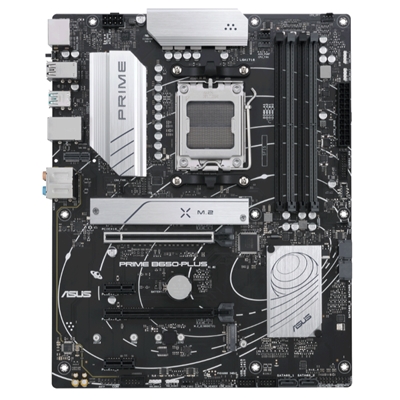

MB ASUS PRIME B650-PLUS B650 AM5 4XDDR5DC-6400(OC) DP HDMI 1XPCIE4.0X16 4XSATA3 M.2 USB3.2 ATX 90MB1BS0-M0EAY0

Descrizione

MB ASUS PRIME B650-PLUS B650 AM5 4XDDR5DC-6400(OC) DP HDMI 1XPCIE4.0X16 4XSATA3 M.2 USB3.2 ATX 90MB1BS0-M0EAY0

CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset
AMD B650 Chipset

Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II

Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 8K 60Hz as specified in DisplayPort 1.4
Supports 4K 60Hz as specified in HDMI® 2.1

Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors:
– 1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset:
– 1 x PCIe 4.0 x16 slot (support x4 mode)
– 2 x PCIe 4.0 x1 slots

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors:
– M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
– M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset:
– 4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth
Vertical M.2 slot only (Key E, PCIe)

USB
Rear USB (Total 8 ports):
– 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
– 2 x USB 3.2 Gen 1 ports (2 x Type-A)
– 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports):
– 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features:
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button

Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 3 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
Storage related:
– 2 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
– 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 1 x Aura RGB header
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x SPI TPM header (14-1pin)
– 1 x 20-3 pin System Panel header with Chassis intrude function
– 1 x Thunderbolt™ (USB4®) header

Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
– 2 x SATA 6Gb/s cables
Miscellaneous:
– 1 x I/O Shield
– 1 x M.2 Rubber Package
– 1 x Screw package for M.2 SSD
Documentation:
– 1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
