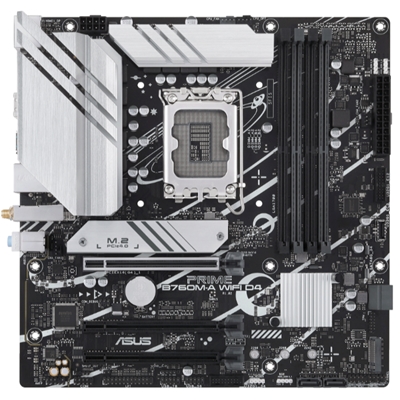

MB ASUS PRIME B760M-A WIFI D4 B760 LGA1700 4XDDR4DC-5333O.C. 1XPCIE4.0X16 DP 2XHDMI 4XSATA3R M.2 WI-FI MATX 90MB1CX0-M0EAY0

Descrizione

MB ASUS PRIME B760M-A WIFI D4 B760 LGA1700 4XDDR4DC-5333O.C. 1XPCIE4.0X16 DP 2XHDMI 4XSATA3R M.2 WI-FI MATX 90MB1CX0-M0EAY0

CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® B760 Chipset

Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x DisplayPort
2 x HDMI® ports
Supports max. 4K 60Hz as specified in DisplayPort 1.4.
Supports 4K 60Hz as specified in HDMI® 2.1.

Expansion Slots
Intel® 13th & 12th Gen Processors:
– 1 x PCIe 4.0 x16 slot
Intel® B760 Chipset:
– 1 x PCIe 4.0 x16 slot (supports x4 mode)
– 1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage
Total supports 2 x M.2 slots and 4x SATA 6Gb/ s ports
Intel® 13th & 12th Gen Processors:
– M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset:
– M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/ s ports

Ethernet
1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/ b/ g/ n/ ac/ ax)
Supports 2.4/ 5GHz frequency band
Bluetooth v5.2

USB
Rear USB (Total 6 ports):
– 2 x USB 3.2 Gen 2 ports (2 x Type-A )
– 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports):
– 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
– 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
– 2 x USB 2.0 headers support 4 additional USB 2.0 ports
– 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/ 192 kHz playback
Audio Features:
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

Back Panel I/ O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMI® ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/ 2 Keyboard/ Mouse combo port

Internal I/ O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 2 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
Storage related:
– 2 x M.2 slots (Key M)
– 4 x SATA 6Gb/ s ports
USB:
– 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
– 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
– 2 x USB 2.0 headers support 4 additional USB 2.0 ports
– 1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 1 x Aura RGB header
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x LPT header
– 1 x S/ PDIF Out header
– 1 x SPI TPM header (14-1pin)
– 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/ O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– Digi+ VRM
– PC Cleaner
ASUS CPU-Z
MyAsus
Norton Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
– 2 x SATA 6Gb/ s cables
Miscellaneous:
– 1 x ASUS Wi-Fi moving antennas
– 1 x I/ O Shield
– 1 x M.2 Rubber Package
– 1 x Screw package for M.2 SSD
Documentation:
– 1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
