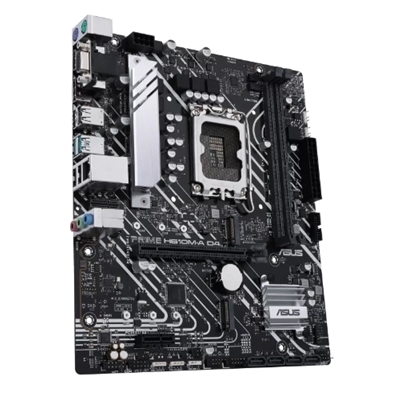

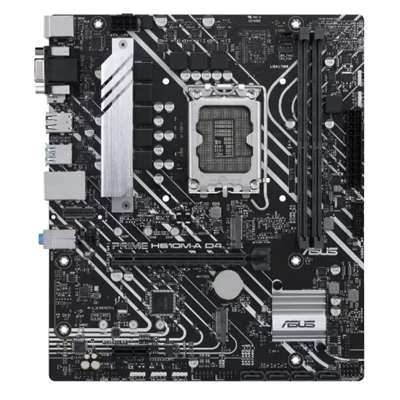

MB ASUS PRIME H610M-A D4-CSM H610 LGA1700 2XDDRDC-3200 D-SUB HDMI DP 1XPCIE4.0X16 4XSATA3 M2 GBLAN USB3.2 MATX 90MB19P0-M0EAYC

Descrizione

MB ASUS PRIME H610M-A D4-CSM H610 LGA1700 2XDDRDC-3200 D-SUB HDMI DP 1XPCIE4.0X16 4XSATA3 M2 GBLAN USB3.2 MATX 90MB19P0-M0EAYC

CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® H610 Chipset

Memory
2 x DIMM, Max. 64GB, DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphics
1 x DisplayPort
1 x D-Sub port
1 x HDMI® port
Supports max. 4K 60Hz as specified in DisplayPort 1.4
Supports 4K 60Hz as specified in HDMI 2.1

Expansion Slots
Intel® 12th Gen Processors:
– 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset:
– 1 x PCIe 3.0 x1 slot

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb / s ports
Intel® H610 Chipset:
– M.2_1 slot (Key M), type 2242 / 2260 / 2280 (supports PCIe 3.0 x4 mode)
– M.2_2 slot (Key M), type 2242 / 2260 / 2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb / s ports

Ethernet
1 x Intel® 1Gb Ethernet

Wireless & Bluetooth
V-M.2 slot only (Key E, CNVi & PCIe)

USB
Rear USB (Total 6 ports):
– 2 x USB 3.2 Gen 2 ports (2 x Type-A)
– 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports):
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit / 192 kHz playback
Audio Features:
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

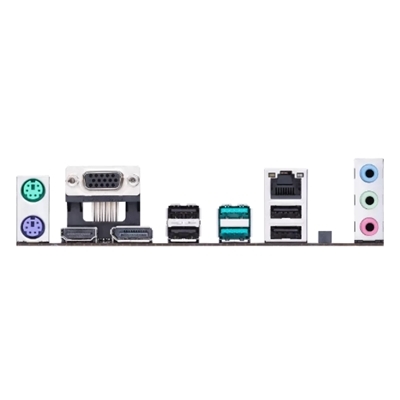

Back Panel I / O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x D-Sub port
1 x V-M.2 slot (Key E)
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS / 2 Keyboard (purple) port
1 x PS / 2 Mouse (green) port

Internal I / O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 2 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
Storage related:
– 2 x M.2 slots (Key M)
– 4 x SATA 6Gb / s ports
USB:
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 2 x AURA RGB headers
– 1 x Clear CMOS header
– 1 x Front Panel Audio header (AAFP)
– 1 x COM Port header
– 1 x S / PDIF Out header
– 1 x Speaker header
– 1 x SPI TPM header (14-1pin)
– 1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III:
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I / O
ASUS Q-Design:
– Q-DIMM
– Q-Slot
ASUS Thermal Solution:
– VRM heatsink design
AURA Sync:
– AURA RGB headers
– Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 2+
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
IT Management software supported
– ASUS Control Center Express(ACCE)
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS:
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
– 2 x SATA 6Gb / s cables
Miscellaneous:
– 1 x I / O Shield
– 1 x M.2 SSD screw package
Installation Media:
– 1 x Support DVD
Documentation:
– 1 x ACC Express Activation Key Card
– 1 x User guide

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
mATX Form Factor
9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
