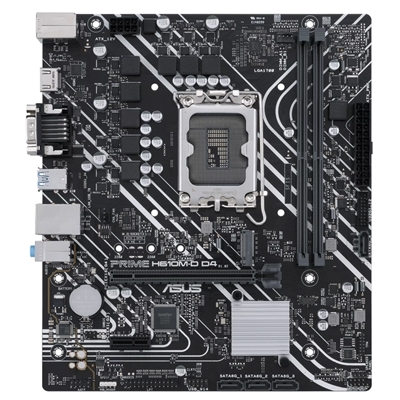

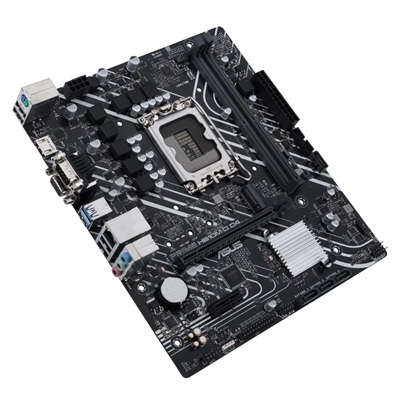

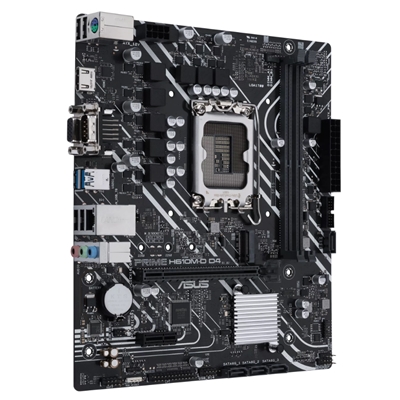

MB ASUS PRIME H610M-D D4 H610 LGA1700 2XDDR4DC-3200 HDMI D-SUB 1XPCIE4.0X16 4XSATA3 M2 GBLAN USB3.2 MATX 90MB1A00-M0EAY0

Descrizione

MB ASUS PRIME H610M-D D4 H610 LGA1700 2XDDR4DC-3200 HDMI D-SUB 1XPCIE4.0X16 4XSATA3 M2 GBLAN USB3.2 MATX 90MB1A00-M0EAY0

CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® H610 Chipset

Memory
2 x DIMM, Max. 64GB, DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphics
1 x D-Sub port
1 x HDMI® port
Supports 4K 60Hz as specified in HDMI 2.1.

Expansion Slots
Intel® 12th Gen Processors:
– 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset:
– 1 x PCIe 3.0 x1 slot

Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset:
– M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 1Gb Ethernet

USB
Rear USB (Total 6 ports):
– 2 x USB 3.2 Gen 1 ports (2 x Type-A)
– 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports):
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features:
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin Chassis Fan header
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
Storage related:
– 1 x M.2 slot (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous:
– 1 x RGB header
– 1 x Clear CMOS header
– 1 x Front Panel Audio header (AAFP)
– 1 x LPT header
– 1 x S/PDIF Out header
– 1 x Speaker header
– 1 x SPI TPM header (14-1pin)
– 1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
ASUS Lighting Control
– RGB header

Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
– 2 x SATA 6Gb/s cables
Miscellaneous:
– 1 x I/O Shield
– 1 x M.2 ANCHOR
Installation Media:
– 1 x Support DVD
Documentation:
– 1 x User Guide

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
mATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
