Descrizione

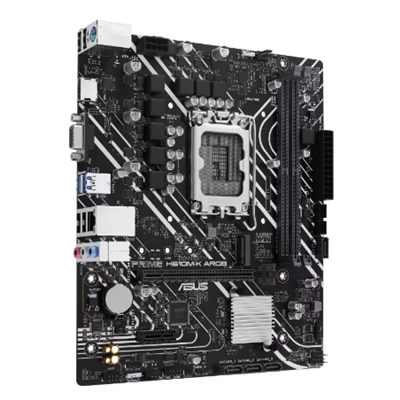

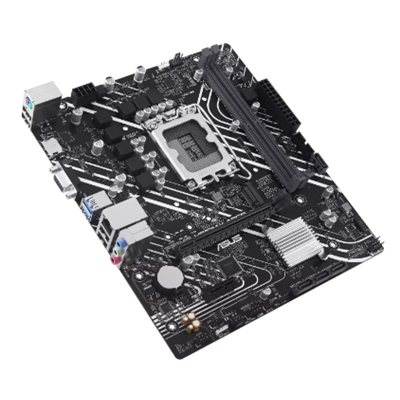

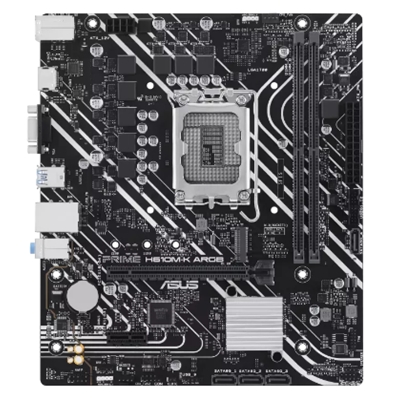

MB ASUS PRIME H610M-K ARGB H610 LGA1700 2XDDR5DC-5600 HDMI VGA 1XPCIE4.0X16 4XSATA3 M2 GBLAN USB3.2 MATX 90MB1G90-M0
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® H610 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphics
1 x VGA port
1 x HDMI™ port
Supports 4K 60Hz as specified in HDMI 2.1
Expansion Slots
Intel® 13th & 12th Gen Processors:
– 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset:
– 1 x PCIe 3.0 x1 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset:
– M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
– 4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports):
– 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
– 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 3 ports):
– 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
– 1 x USB 2.0 header supports 1 additional USB 2.0 port
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features:
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 2 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
Storage related:
– 1 x M.2 slot (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
– 1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous:
– 2 x Addressable Gen 2 headers
– 1 x Clear CMOS header
– 1 x Front Panel Audio header (AAFP)
– 1 x COM Port header
– 1 x S/PDIF Out header
– 1 x Speaker header
– 1 x SPI TPM header (14-1pin)
– 1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III:
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design:
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution:
– Aluminum heatsink design
Aura Sync:
– Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software:
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Two-Way AI Noise Cancellation
AI Suite 3
– EPU
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS:
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables:
– 2 x SATA 6Gb/s cables
Miscellaneous:
– 1 x I/O Shield
– 1 x M.2 Anchor
Documentation:
– 1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor
9.2 inch x 8.0 inch (23.4 cm x 20.3 cm)
