Descrizione

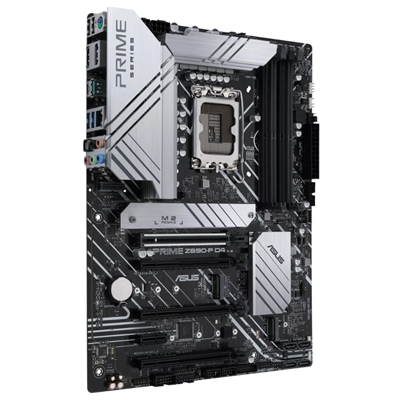

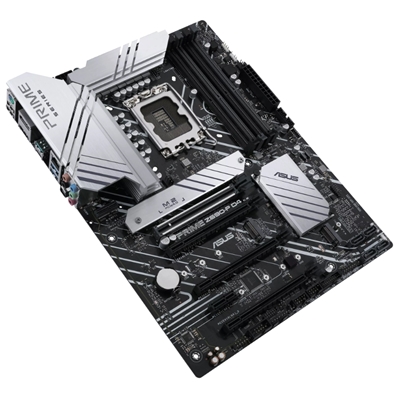

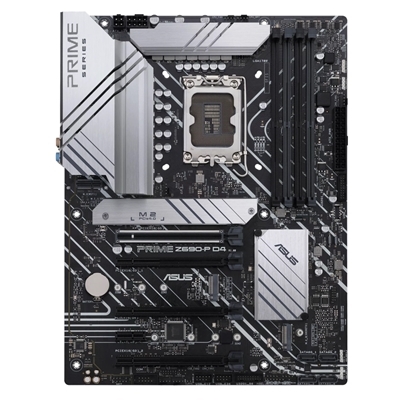

MB ASUS PRIME Z690-P D4-CSM LGA1700 4XDDR4DC-5333O.C. DP HDMI 1XPCIE5.0X16 1XPCIE4.0X16 4XSATA3R M.2 GBLAN ATX 90MB18P0-M0EAYC
CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Z690
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics
1 x DisplayPort
1 x HDMI® Port
Supports max. 4K 60Hz as specified in DisplayPort 1.4
Supports 4K 60Hz as specified in HDMI 2.1
Expansion Slots
Intel® 12th Gen Processors:
– 1 x PCIe 5.0 / 4.0 / 3.0 x16 slot
Intel® Z690 Chipset:
– 1 x PCIe 4.0 / 3.0 x16 slot (supports x4 mode)
– 2 x PCIe 3.0 x16 slots (support x4 mode)
– 1 x PCIe 3.0 x1 slot
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors:
– M.2_1 slot (Key M), type 2242 / 2260 / 2280 / 22110
– Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset:
– M.2_2 slot (Key M), type 2242 / 2260 / 2280 (supports PCIe 4.0 x4 mode)
– M.2_3 slot (Key M), type 2242 / 2260 / 2280 / 22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb / s ports
Wireless & Bluetooth
V-M.2 slot only (Key E, CNVi & PCIe)
USB
Rear USB (Total 6 ports):
– 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
– 1 x USB 3.2 Gen 2 port (1 x Type-A)
– 2 x USB 3.2 Gen 1 ports (2 x Type-A)
– 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports):
– 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
– 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit / 192 kHz playback
Audio Features:
– Audio Shielding
– Rear optical S / PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 3 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
– 1 x 4-pin +12V Power connector
Storage related:
– 3 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
– 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 1 x AURA RGB header
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x SPI TPM header (14-1pin)
– 1 x 20-5pin System Panel header
– 1 x Thunderbolt™ header
Special Features
ASUS 5X PROTECTION III:
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot
– Stainless-Steel Back I / O
ASUS Q-Design:
– Q-DIMM
– Q-Slot
ASUS Thermal Solution:
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY:
– ProCool
AURA Sync:
– AURA RGB header
– Addressable Gen 2 headers
Software Features
ASUS Exclusive Software:
Armoury Crate
– AURA Sync
– Fan Xpert 4
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS:
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables:
– 2 x SATA 6Gb / s cables
Miscellaneous:
– 1 x I / O Shield
– 1 x M.2 Rubber Package
– 2 x M.2 SSD screw packages
Installation Media:
– 1 x Support DVD
Documentation:
– 1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
