Descrizione

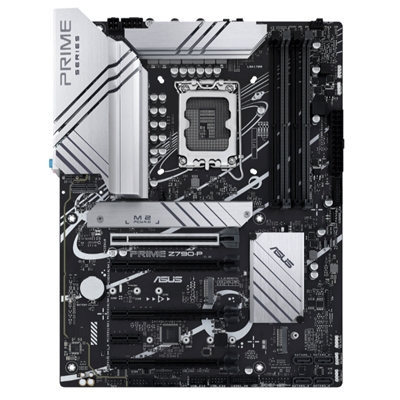

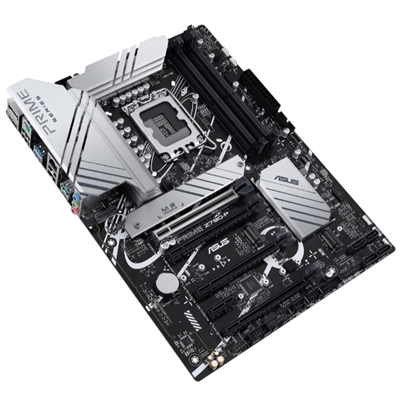

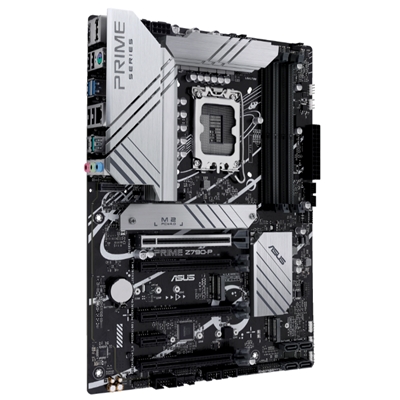

MB ASUS PRIME Z790-P Z790 LGA1700 4XDDR5DC-7000(O.C.) 1XPCIE5.0X16 DP HDMI 4XSATA3 M.2 USB3.2 ATX 90MB1CK0-M0EAY0
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® Z790 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 4K 60Hz as specified in DisplayPort 1.4
Supports 4K 60Hz as specified in HDMI 2.1
Expansion Slots
Intel® 13th & 12th Gen Processors:
– 1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset:
– 3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors:
– M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset:
– M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
– M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Vertical M.2 slot only (Key E, CNVi & PCIe)
USB
Rear USB (Total 8 ports):
– 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
– 1 x USB 3.2 Gen 2 port (1 x Type-A)
– 2 x USB 3.2 Gen 1 ports (2 x Type-A)
– 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports):
– 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
– 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features:
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 3 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
– 1 x 4-pin +12V Power connector
Storage related:
– 3 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
USB
– 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
– 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
– 3 x Addressable Gen 2 headers
– 2 x Aura RGB headers
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x S/PDIF Out header
– 1 x SPI TPM header (14-1pin)
– 1 x 20-5pin System Panel header
– 1 x Thunderbolt™ (USB4®) Header
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB headers
– Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables:
– 2 x SATA 6Gb/s cables
Miscellaneous:
– 1 x I/O Shield
– 1 x M.2 Rubber Package
– 2 x Screw packages for M.2 SSD
Documentation:
– 1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
