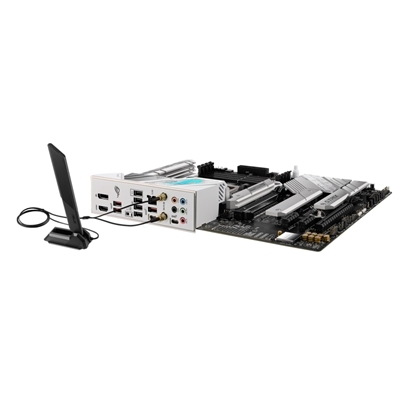

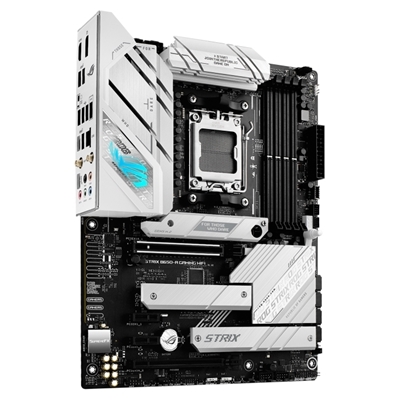

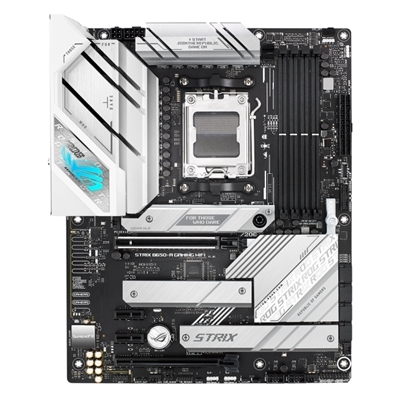

MB ASUS ROG STRIX B650-A GAMING WIFI B650 AM5 4XDDR5-6400(OC) DP HDMI 1XPCIE4.0X16 4XSATA3 M.2 WIFI USB3.2 ATX 90MB1BP0-M0EAY0

Descrizione

MB ASUS ROG STRIX B650-A GAMING WIFI B650 AM5 4XDDR5-6400(OC) DP HDMI 1XPCIE4.0X16 4XSATA3 M.2 WIFI USB3.2 ATX 90MB1BP0-M0EAY0

CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset
AMD B650

Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II

Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 8K 60Hz as specified in DisplayPort 1.4.
Supports 4K 60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors:
– 1 x PCIe 5.0 x16 slot
AMD B650 Chipset:
– 1 x PCIe 4.0 x16 slot (supports x4 mode)
– 2 x PCIe 4.0/3.0 x1 slots

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors:
– M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
– M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset:
– M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
– 4 x SATA 6Gb/s port

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

USB
Rear USB (Total 12 ports):
– 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
– 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
– 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports):
– 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features:
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™  button

Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 4 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
– 1 x 4-pin +12V Power connector
Storage related:
– 3 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers supports additional 4 USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 1 x AURA RGB header
– 1 x Clear CMOS header
– 1 x CPU Over Voltage jumper
– 1 x Front Panel Audio header (AAFP)
– 1 x S/PDIF Out header
– 1 x 20-3 pin System Panel header with Chassis intrude function
– 1 x Thermal Sensor header
– 1 x Thunderbolt™header
– 1 x COM_DEBUGheader

Special Features
Extreme Engine Digi+:
– 5K Black Metallic Capacitors
ASUS Q-Design:
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-LED
– Q-DIMM
– Q-Slot
ASUS Thermal Solution:
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY:
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync:
– AURA RGB header
– Addressable Gen 2 headers

Software Features
ROG Exclusive Software:
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software
ASUS Exclusive Software:
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
WinRAR
UEFI BIOS:
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
– 2 x SATA 6Gb/s cables
Additional Cooling Kit:
– 1 x Thermal pad for M.2
Miscellaneous:
– 1 x ASUS Wi-Fi moving antennas
– 1 x Cable ties pack
– 1 x M.2 Q-Latch package
– 1 x ROG key chain
– 1 x ROG Strix stickers
– 1 x ROG Strix thank you card
– 2 x M.2 Rubber Packages
Documentation:
– 1 x User guide

Operating System
Windows® 11 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
