Descrizione

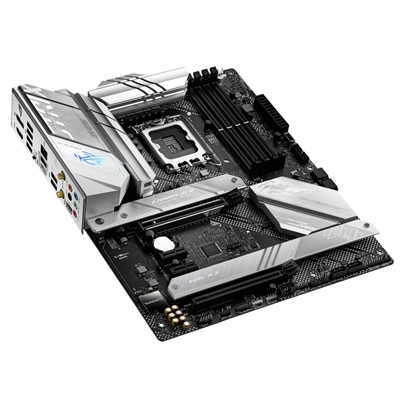

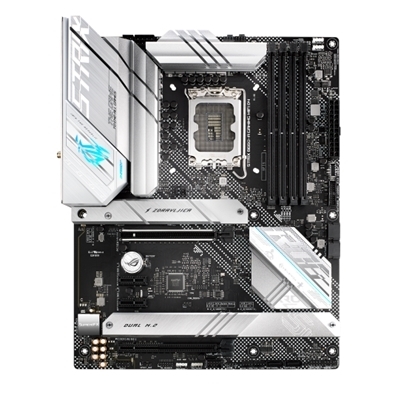

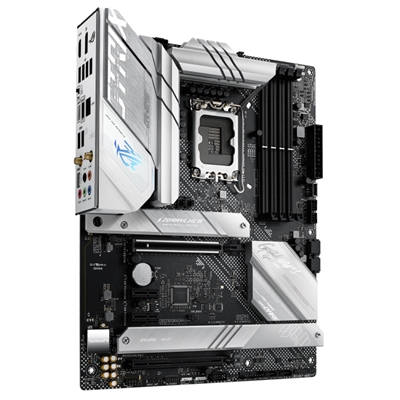

MB ASUS ROG STRIX B660-A GAMING WIFI B660 LGA1700 4XDDR5DC-6000OC HDMI DP 1XPCIE5.0X16 4XSATA3R M.2 WIFI ATX 90MB1B00-M0EAY0
CPU
Intel® Socket LGA1700 for 12th Gen Intel®Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® B660 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC) /4800(OC) /4600(OC) /4400(OC) /4266(OC) /4000(OC) /3733(OC) /3600(OC) /3466(OC) /3400(OC) /3333(OC) /3200 /3000 /2933 /2800 /2666 /2400 /2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
Graphics
1 x DisplayPort
1 x HDMI® port
Support 4K 60Hz as specified in DisplayPort 1.4
Support 4K 60Hz as specified in HDMI 2.1
Expansion Slots
Intel® 12th Gen Processors:
– 1 x PCIe 5.0/4.0/3.0 x16 slot(s)
Intel® B660 Chipset:
– 1 x PCIe 3.0 x16 slot (supports x4 mode)
– 2 x PCIe 3.0 x1 slots
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors:
– M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset:
– M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
– M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
USB
Rear USB (Total 9 ports):
– 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
– 1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
– 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®)
– 4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 6 ports):
– 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
– 1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header(s)
– 1 x 4-pin CPU OPT Fan header(s)
– 1 x 4-pin AIO Pump header(s)
– 3 x 4-pin Chassis Fan header(s)
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
– 1 x 4-pin +12V Power connector
Storage related:
– 3 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 2 connector (support USB Type-C®)
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 1 x AURA RGB header
– 1 x Clear CMOS header
– 1 x Front Panel Audio header (AAFP)
– 1 x S/PDIF Out header
– 1 x SPI TPM header (14-1pin)
– 1 x 20-3 pin System Panel header with Chassis intrude function
– 1 x Thunderbolt™ header
Special Features
Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– CPU Socket lever protector
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– AURA RGB header(s)
– Addressable Gen 2 header(s)
Software Features
ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
192 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables:
– 4 x SATA 6Gb/s cables
Miscellaneous:
– 1 x ASUS Wi-Fi moving antennas
– 1 x Cable ties pack
– 1 x M.2 Rubber Package(s)
– 1 x M.2 Q-Latch package(s)
– 1 x ROG key chain
– 1 x ROG Strix stickers
– 1 x ROG Strix thank you card
Installation Media:
– 1 x Support DVD
Documentation:
– 1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
