Descrizione

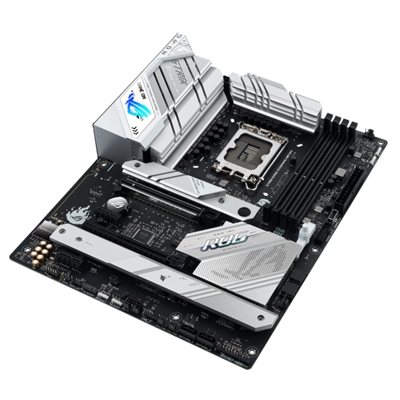

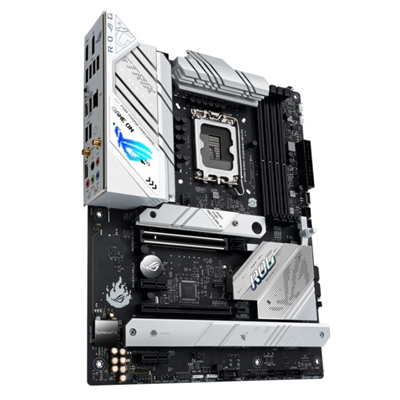

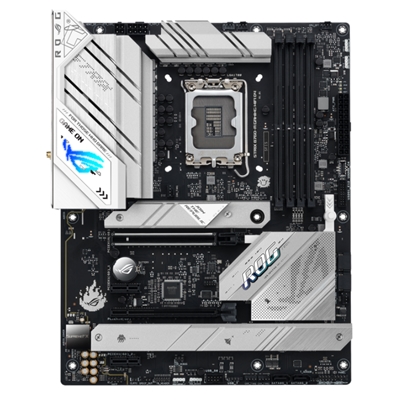

MB ASUS ROG STRIX B760-A GAMING WIFI D4 B760 LGA1700 4XDDR4DC-5333O.C 1XPCIE5.0X16 DP HDMI 4XSATA3R M.2 WIFI ATX 90MB
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 4K 60Hz as specified in DisplayPort 1.4
Supports 4K 60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors:
– 1 x PCIe 5.0 x16 slot
Intel® B760 Chipset:
– 1 x PCIe 3.0 x16 slot (supports x4 mode)
– 2 x PCIe 3.0 x1 slots
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/ s ports
Intel® 13th & 12th Gen Processors:
– M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset:
– M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mode)
– M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/ s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard / / TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/ b/ g/ n/ ac/ ax)
Supports 2.4/ 5/ 6GHz frequency band
Bluetooth® v5.3
USB
Rear USB (Total 9 ports):
– 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
– 1 x USB 3.2 Gen 2 port (1 x Type-A)
– 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C®)
– 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports):
– 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
– 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/ 384 kHz playback
Audio Features:
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
Back Panel I/ O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/ O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 4 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
– 1 x 4-pin +12V Power connector
Storage related:
– 3 x M.2 slots (Key M)
– 4 x SATA 6Gb/ s ports
USB:
– 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
– 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
– 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 1 x Aura RGB header
– 1 x Clear CMOS header
– 1 x Front Panel Audio header (AAFP)
– 1 x S/ PDIF Out header
– 1 x 20-5 pin System Panel header
– 1 x Thunderbolt™ (USB4®) header
Special Features
Extreme Engine Digi+:
– 5K Black Metallic Capacitors
ASUS Q-Design:
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution:
– VRM heatsink design
ASUS EZ DIY:
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– CPU Socket lever protector
– ProCool
– Pre-mounted I/ O shield
– SafeSlot
– SafeDIMM
Aura Sync:
– Aura RGB header
– Addressable Gen 2 headers
Software Features
ROG Exclusive Software:
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software:
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS:
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME
Accessories
Cables:
– 2 x SATA 6Gb/ s cables
Additional Cooling Kit:
– 1 x Thermal pad for M.2
Miscellaneous:
– 1 x ASUS Wi-Fi moving antennas
– 1 x Cable ties package
– 1 x M.2 Q-Latch package
– 1 x ROG key chain
– 1 x ROG Strix stickers
– 1 x ROG Strix thank you card
– 1 x M.2 Rubber Packages
Documentation:
– 1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
