Descrizione

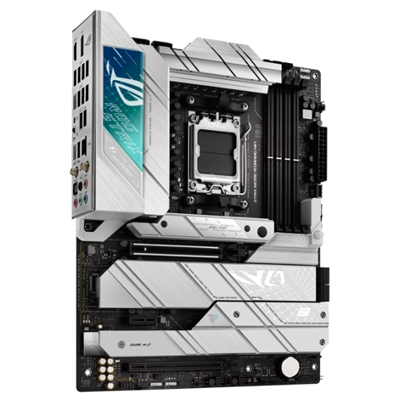

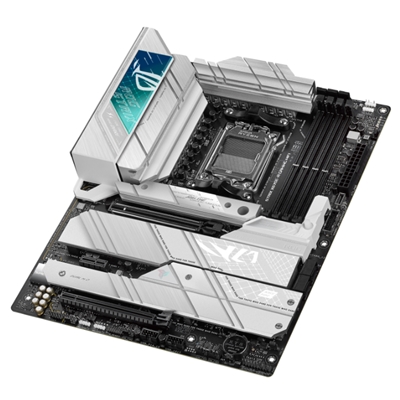

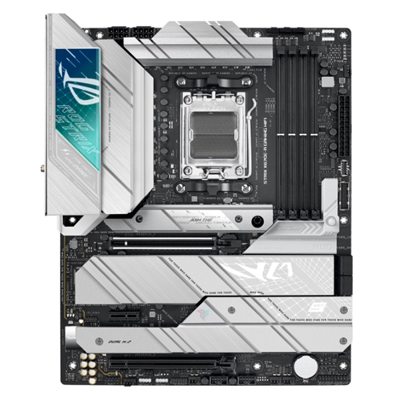

MB ASUS ROG STRIX X670E-A GAMING WIFI LGA AM5 X670 AMD 4XDDR5DC-8000O.C. HDMI 4SATA3R M.2 USB3.2 ATX 90MB1
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Chipset
AMD X670
Memory
4 x DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II
Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 8K 60Hz as specified in DisplayPort 1.4
Supports Supports 4K 60Hz as specified in HDMI 2.1
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors:
– 1 x PCIe 5.0/4.0/3.0 x16 slot
AMD X670 Chipset:
– 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
– 1 x PCIe 3.0 x1 slot
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors:
– M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
– M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X670 Chipset:
– M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
– M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
USB
Rear USB (Total 12 ports):
– 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
– 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
– 1 x USB 3.2 Gen 1 port (1 x Type-A)
– 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports):
– 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features:
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 5 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 2 x 8-pin +12V Power connector
Storage related:
– 4 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
– 1 x USB 3.2 Gen 1 header supports additional
– 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 1 x Aura RGB header
– 1 x CPU Over Voltage jumper
– 1 x Front Panel Audio header (AAFP)
– 1 x 20-3 pin System Panel header with Chassis intrude function
– 1 x Thermal Sensor header
– 1 x Thunderbolt™ header
Special Features
Extreme Engine Digi+:
– 5K Black Metallic Capacitors
ASUS Q-Design:
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution:
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY:
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync:
– AURA RGB header
– Addressable Gen 2 headers
Software Features
ROG Exclusive Software:
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software
ASUS Exclusive Software:
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables:
– 2 x SATA 6Gb/s cables
Additional Cooling Kit:
– 1 x Thermal pad for M.2
Miscellaneous:
– 1 x ASUS Wi-Fi moving antennas
– 1 x Cable ties pack
– 1 x M.2 Q-Latch packages for M.2 backplate
– 1 x M.2 Q-Latch package
– 1 x ROG key chain
– 1 x ROG Strix sticker
– 1 x ROG Strix thank you card
– 2 x Rubber Packages for M.2
– 1 x Rubber Package for M.2 backplate
Documentation:
– 1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
