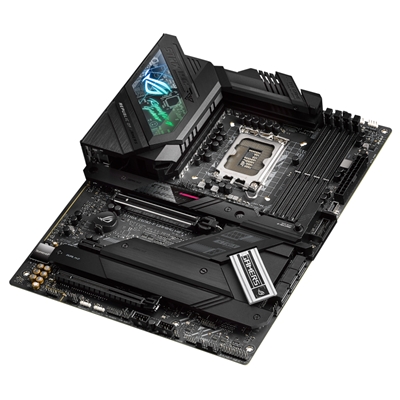

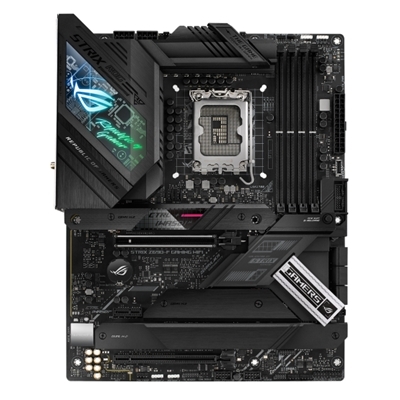

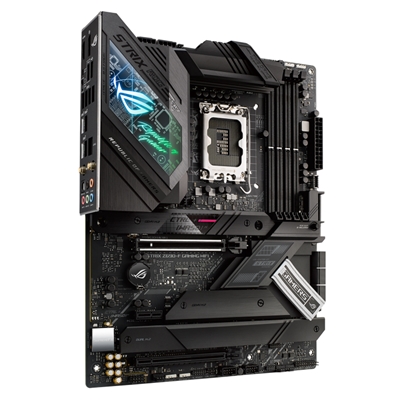

MB ASUS ROG STRIX Z690-F GAMING WIFI Z690 LGA1700 4XDDR5DC-6400O.C. HDMI DP 1XPCIE5.0X16 6XSATA3R M.2 WI-FI ATX 90MB1 FINO:01/03

Descrizione

MB ASUS ROG STRIX Z690-F GAMING WIFI Z690 LGA1700 4XDDR5DC-6400O.C. HDMI DP 1XPCIE5.0X16 6XSATA3R M.2 WI-FI ATX 90MB1

CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Z690

Memory
4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
1 x DisplayPort
1 x HDMI®
Support 8K 60Hz as specified in DisplayPort 1.4
Support 4K 60Hz as specified in HDMI 2.1

Expansion Slots
Intel® 12th Gen Processors:
– 1 x PCIe 5.0 x16 slot
– Intel® 12th support PCIe 5.0 x16 mode
Intel® Z690 Chipset:
– 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)
– 1 x PCIe 3.0 x1 slot

Storage
Intel®12th Gen Processors:
– M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z690 Chipset:
– M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
– M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
– M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
– 6 x SATA 6Gb/s ports

Ethernet
1 x Intel® 2.5Gb Ethernet

Wireless & Bluetooth
Intel® Wi-Fi 6E
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 hardware ready

USB
Rear USB: Total 10 ports
– 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
– 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
– 4 x USB 3.2 Gen 1 ports (4 x Type-A)
– 2 x USB 2.0 ports (2 x Type-A)
Front USB: Total 7 ports
– 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080:
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback”
Audio Features:
– SupremeFX Shielding Technology
– ALC4080 + Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 5 x 4-pin Chassis Fan headers
Power related:
– 1 x 24-pin Main Power connector
– 2 x 8-pin +12V Power connector
Storage related:
– 4 x M.2 slots (Key M)
– 6 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 headers
– 1 x AURA RGB header
– 1 x BMC header
– 1 x CPU Over Voltage jumper
– 1 x Front Panel Audio header (AAFP)
– 1 x SPI TPM header (14-1pin)
– 1 x 20-3 pin System Panel header with Chassis intrude function
– 1 x Thermal Sensor header
– 1 x Thunderbolt header

Special Features
Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
 -CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– AURA RGB header
– Addressable Gen 2 RGB headers
ASUS HYDRANODE
– 1 x Chassis fan support
TPM header

Software Features
ROG Exclusive Software
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
AI Suite 3
– Easy Optimization with AI Overclocking
 TPU
 EPU
 DIGI+ VRM
 Turbo app
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
– 4 x SATA 6Gb/s cables
Miscellaneous:
– 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas
– 1 x M.2 Q-Latch package
– 1 x M.2 Q-Latch package for M.2 backplate
– 2 x M.2 Rubber Packages
– 1 x ROG key chain
– 1 x cable tie
– 1 x ROG STRIX stickers
– 1 x ROG STRIX thank you card
Installation Media:
– 1 x Support DVD
Documentation:
– 1 x User manual

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
ATX
30.5cm x 24.4cm
