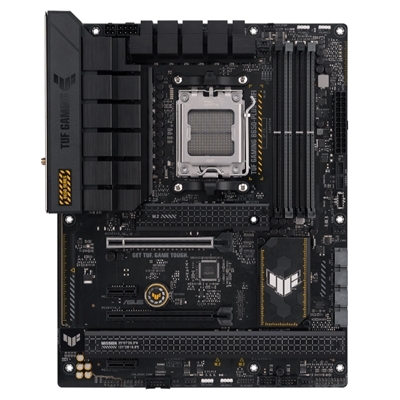

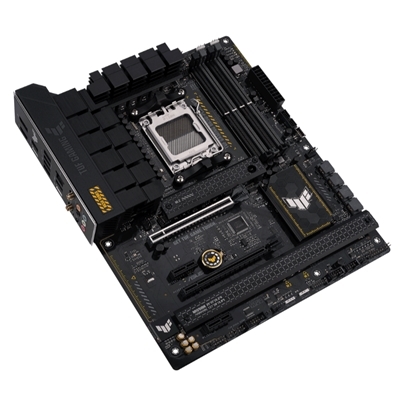

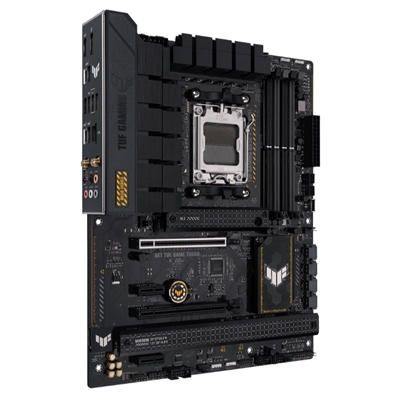

MB ASUS TUF GAMING B650-PLUS WIFI B650 AM5 4XDDR5DC-6400(OC) DP HDMI 1XPCIE4.0X16 4XSATA3 M.2 WIFI USB3.2 ATX 90MB1BZ0-M0EAY0

Descrizione

MB ASUS TUF GAMING B650-PLUS WIFI B650 AM5 4XDDR5DC-6400(OC) DP HDMI 1XPCIE4.0X16 4XSATA3 M.2 WIFI USB3.2 ATX 90MB1BZ0-M0EAY0

CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset
AMD B650

Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II

Graphics
1 x DisplayPort
1 x HDMI® port
Supports max. 8K 60Hz as specified in DisplayPort 1.4.
Supports 4K 60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors:
– 1 x PCIe 4.0/3.0 x16 slot(s)
AMD B650 Chipset:
– 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
– 2 x PCIe 4.0/3.0 x1 slots

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors:
– M.2_1 slot (Key M), type
– 2242/2260/2280(supports PCIe 5.0 x4 mode)
– M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset:
– M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
– 4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth
Wi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

USB
Rear USB (Total 8 ports):
– 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
– 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
– 4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports):
– 1 x USB 3.2Gen 1 connector (supports USB Type-C®)
– 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
– 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features:
– Audio Shielding
– Power pre-regulator reduces power input noise to ensure consistent performance
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit

Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors
Fan and Cooling related:
– 1 x 4-pin CPU Fan header(s)
– 1 x 4-pin CPU OPT Fan header(s)
– 1 x 4-pin AIO Pump header(s)
– 4 x 4-pin Chassis Fan header(s)
Power related:
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector
– 1 x 4-pin +12V Power connector
Storage related:
– 3 x M.2 slots (Key M)
– 4 x SATA 6Gb/s ports
USB:
– 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )
– 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
– 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous:
– 3 x Addressable Gen 2 header(s)
– 1 x Aura RGB header(s)
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 20-3 pin System Panel header with Chassis intrude function
– 1 x Thunderbolt™ (USB4®) header

Special Features
ASUS TUF PROTECTION:
– DIGI+ VRM (- Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design:
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution:
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY:
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
Aura Sync:
– Aura RGB header(s)
– Addressable Gen 2 header(s)

Software Features
ASUS Exclusive Software:
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS:
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Operating System
Windows® 11
Windows® 10 64-bit

Form Factor
ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
