Descrizione

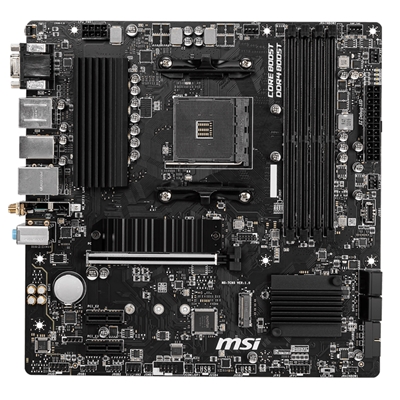

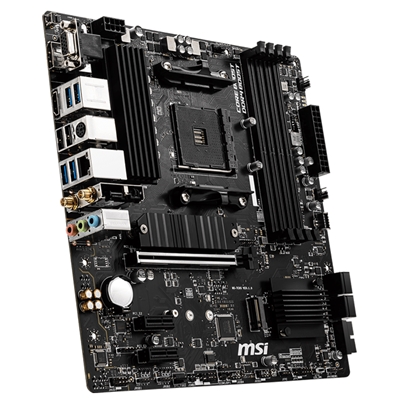

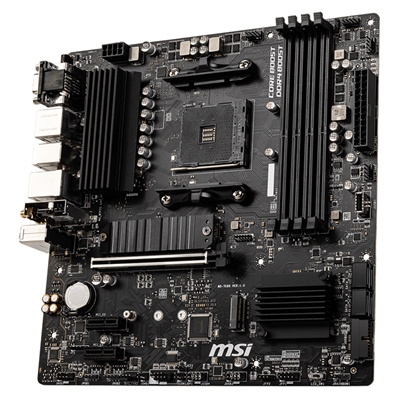

MB MSI B550M PRO-VDH WIFI AM4 4XDDR4DC-4400 1XHDMI 1XDP 1XPCIE4.0X16 2XM.2 4XSATA3R GBLAN USB3.2 MATX
Model Name
B550M PRO-VDH WIFI
CPU Support
Support for 3rd Gen AMD® Ryzen™ processors and future AMD® Ryzen™ processors with BIOS update
CPU Socket
AMD Socket AM4
Chipset
AMD® B550 Chipset
Graphics Interface
1x PCIe 4.0 / 3.0 x16 slot
Display Interface
DisplayPort, HDMI™, VGA
Requires Processor Graphics
Memory Support
4 DIMMs, Dual Channel DDR4-4400 MHz (OC)
Expansion Slots
2x PCI-E 3.0 x1 slots
Storage
1x M.2 Gen4 x4 slot
1x M.2 Gen3 x4 slot
4x SATA 6Gb/s ports
USB ports
7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C)
6x USB 2.0
LAN
Realtek® RTL8111HN Gigabit LAN
Wi-Fi / Bluetooth
Wi-Fi AC
Bluetooth 4.2
Audio
8-Channel (7.1) HD Audio with Audio Boost
