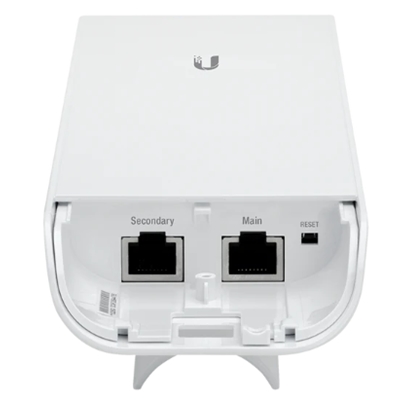

NANOSTATION ACCESS POINT UBIQUITI NSM5 AIRMAX – NANO MIMO -5GHZ-
Dimensions: 294 x 31 x 80 mm (11.57 x 1.22 x 3.15″)
Weight: 400 g (14.11 oz)
Power Supply (PoE): 24V, 0.5A
Max. Power Consumption: 8W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency:
– Worldwide: 5170-5875 MHz
– USA: 5725-5850 MHz
– USA DFS: 5250-5850 Mhz
Gain: 14.6-16.1 dBi
Networking Interface: (2) 10/100 Ethernet Ports
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
Frequency: 5 GHz
Cross-pol Isolation: 22 dB Minimum
Max. VSWR: 1.6:1
Beamwidth: 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic

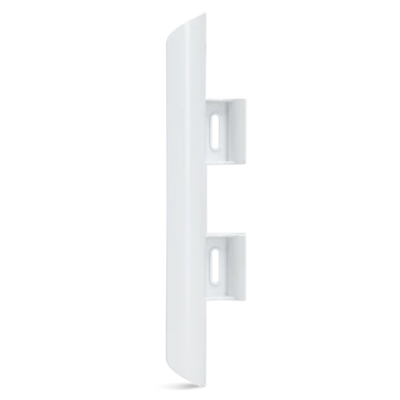

Mounting: Pole-Mount (Kit Included)
Operating Temperature: -30 to 75° C (-22 to 167° F)
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
Shock & Vibration: ETSI300-019-1.4
