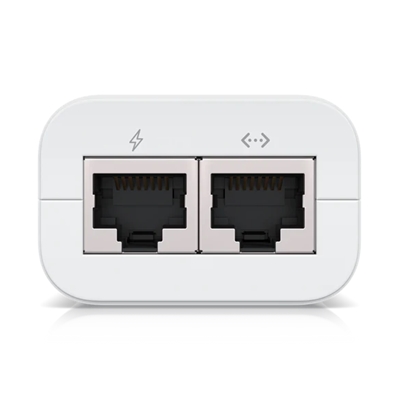

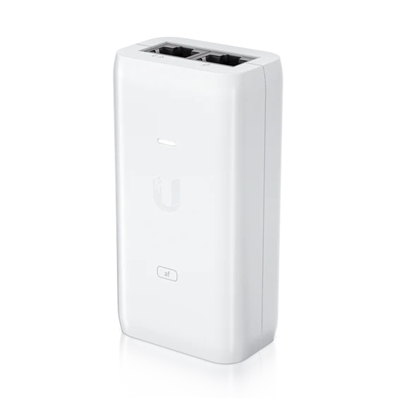

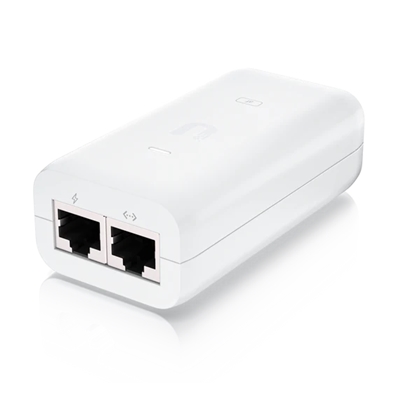

POE INJECTOR GBPS UBIQUITI U-POE-AF 802.3AF

Descrizione

POE INJECTOR GBPS UBIQUITI U-POE-AF 802.3AF
Model: U-POE-af
Dimensions: 86 x 46 x 33 mm (3.39 x 1.81 x 1.30″)
Weight: 100 g (3.53 oz)
Output voltage: 48V DC @ 0.32A
LAN activity indicator: No
Gigabit LAN port: Yes
Remote reset capability: Yes
Reset Button: No
Rated voltage: 100—240V AC @ 50/60Hz
Input current: 500mA @ 90V AC
Inrush current: <100A Peak at 25°C
Efficiency: 84.25+%
Output ripple: 200mV p-p
Switching frequency: 65 kHz
Line regulation: ≤ 3%
Load regulation: ≤ 5%
2-pair powering: Pins 4, 5 (+) and 7, 8 (-)
4-pair powering: No
AC connector: IEC-320 C6
Data In / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge discharge: 1500A (8/20 μs) power
Peak pulse current: 36A (10/1000 μs) data
Shunt capacitance: <5 pF data
Response time: <1 ns
Operating temperature: 0 to 40° C (32 to 104° F)
Storage temperature: -30 to 70°C (-22 to 158° F)
Operating humidity: 5 to 90% noncondensing
Certifications: CE, FCC, IC, UL
