Descrizione

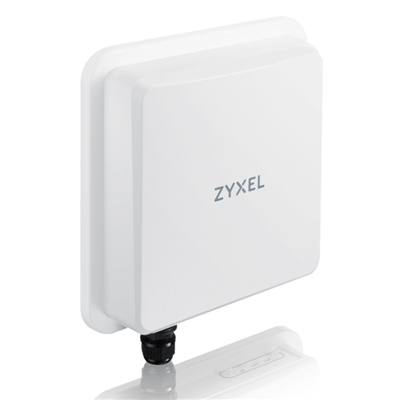

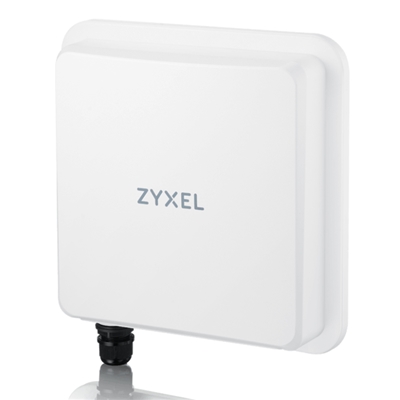

ROUTER 5G/LTE NEBULAFLEX OUTDOOR ZYXEL NR7101-EUZNN1F DWL FINO 5GBPS – SLOT SIM CARD 1P LAN GIGABIT -SUPP.POE (16W)-ANT.INTEG.
Hardware specifications
5G NR interface:
– 3GPP Release 15 standard-compliant
– Supports both NSA and SA modes
– Supports frequencies: n1/n3/n5/n7/n8/n20/n28/n41/n77/n78/n38/n40
– DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78
4G LTE interface:
– 3GPP UE Category 20 standard-compliant
Supports frequencies:
– LTE-FDD: B1/B3/B5/B7/B8/B20/B28
– LTE-TDD: B38/B40/B41/B42
Hardware interface
– 1x GbE RJ-45 PoE LAN port
– LEDs (Power status, Internet status, WiFi status)
– 3FF format Micro SIM card slots (redundant)
– One WiFi on/off button
– One reset to default button
Power consumption
Power consumption at PoE: < 16 W (est.)
Physical specifications
– Item dimensions (WxDxH): 255 x 256 x 58 mm (9.99” x 10.03” x 2.28”)
– Item weight: 1143 g (21 lb.)
– Packing dimensions (WxDxH): 280 x 420 x 108 mm (11.02” x 16.53” x 4.25”)
– Packing weight: 2818 g (61 lb.)
Environmental specifications
Operating Environment:
– Temperature: -40°C to 60°C (- 40°F to 140°F)
– Humidity: 5% to 95% (non-condensing)
Storage Environment:
– Temperature: -40°C to 65°C (-40°F to 149°F)
– Humidity: 5% to 95% (non-condensing)
Ingress Protection rating: IP68
Lightning protection: K.21 enhanced mode, 6 KV
Wind load testing:
– GR 487 issue 4 (2013) standard-compliant
– Level 16 wind force
– Wind speeds 53.6 m/sec (~ 193 km/h)
Certification
– CE
– WEEE (Waste Electrical and Electronic Equipment) Directive certification
– RoHS (Restriction of Hazardous Substances) Directive certification
– HSF (Hazardous Substance Free)
– European Parliament and Council Directive 94/62/EC of 20 December 1994 on packaging and packaging waste
Package contents
– Standard 802.3af/at Power over Ethernet (PoE) injector
– 1.8 M Ethernet cable 8P8C
– Quick Start Guide
– Warranty card
– DoC and safety warning
– Wall/pole mounting kit
