Descrizione

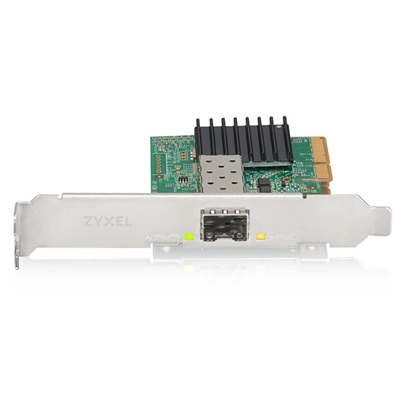

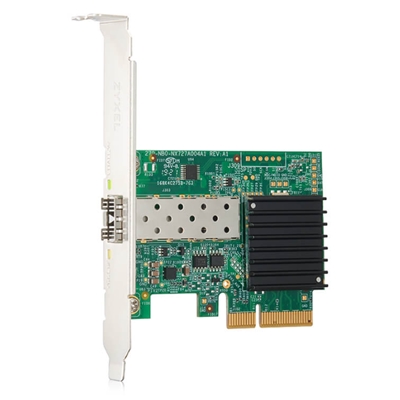

SCHEDA DI RETE ZYXEL XGN100F-ZZ0101F 1P SFP+ 10GB
System Specifications
Standard:
– IEEE 802.3ae
– IEEE 802.1q Tagged VLAN
Performance:
– Quality of Service
– Jumbo frame support up to 16 KB
Features:
– Jumbo frame and VLAN tagging support
– Standard and low profile brackets included
– Compatible with Windows ® and Linux®
Supported OS:
– Windows 7, 8.0, 8.1,10 (32/64-bit) or Server 2012
– Linux kernels 3.10, 3.12, 3.20, 4.2 or 4.4
Hardware Specifications
Interface:
– PCI Express Gen-3(or2) x4 Host Bus Interface
– 1 x 10Gbps SFP+ slot
– Pre-installed with full height bracket, also includes low profile bracket
LED Indicator:
Speed:
– Amber: 10G
– Green: 1G
Activity:
– Green
– Steady: No data transmission
– Blink: Data transmission
Physical Specifications
Item dimensions (WxDxH): 82 x 62 x 18mm (3.22” x 2.44” x 0.7”)
Item weight: 49 g (0.1 lb.)
Packing dimensions (WxDxH): 170 x 137 x 30 mm (6.69” x 5.39” x 1.18”)
Packing weight: 149 g (0.33 lb.)
Environmental Specifications
Operating Environment:
– Temperature: 0°C to 40°C (32°F to 104°F)
– Humidity: 0% to 90% (Non-condensing)
Storage Environment:
– Temperature: -40°C to 85°C (-40°F to 185°F)
– Humidity: 5% to 90% (Non-condensing)
Certification
EMC: CE, FCC, EAC, BSMI, Class B
Package Contents
XGN100F
Quick Start Guide
Low profile bracket
