Descrizione

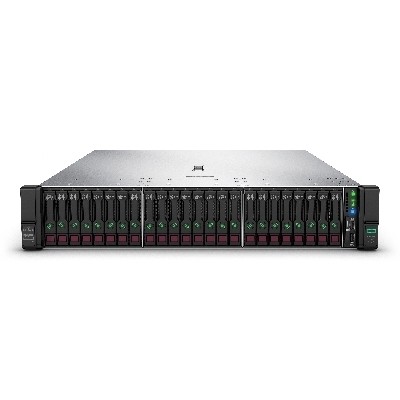

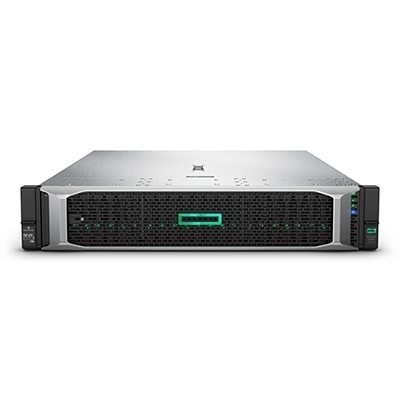

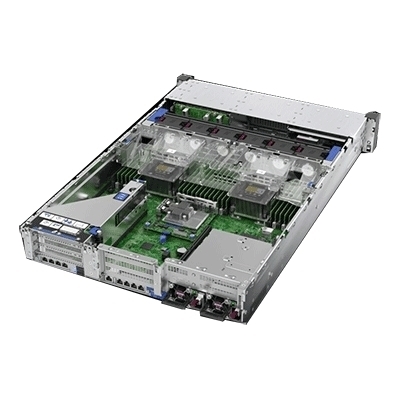

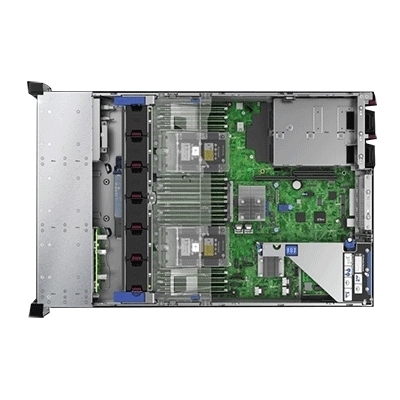

SERVER HPE P20172-B21 DL380 GEN10 RACK 2U XEON 1X4208 8C 2.3GHZ 32GBDDR4 P816I-A NOHDD 12X3.5 NO OPTICAL DISK (NOODD) 4GLAN 366FLR 2X80
HPE ProLiant DL380 Gen10 Intel Xeon-S 4208 8-Core (2.10GHz 11MB) 32GB (1 x 32GB) PC4-2933Y DDR4 RDIMM 12 x Hot Plug 3.5in Large Form Factor Smart Carrier Smart Array P816i-a NC SR No Optical 2 x 800W 3yr Next Business Day Warranty
Struttura
Rack 2U
Serie
DL380 Gen10
Processore
1 x HPE Intel Xeon-S 4208 8-Core (2.10GHz 11MB L3 Cache) Processor Kit
Numero di processori base
1
Processori Max
2
Cache Totale
11MB
Chipset
Intel C621 Chipset
Memoria RAM base
1X32GB
Memoria Base
32 GB RDIMM Dual Rank 2999 MT/s (1 x 32 GB)
NOTE: Funzionano a 2400 MT/s a causa delle limitazioni del processore.
Memoria RAM max.
Tipo: HPE DDR4 SmartMemory, Registered (RDIMM)
DIMM SLots: 24 totali – 12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (RDIMM) 1.54 TB 24 x 64 GB RDIMM @ 2933 MT/s
Alloggiamenti RAM (totali/disponibilità)
24/23 con 2 processori installati
Tipo disco fisso
Hot Plug 3.5in Small Form Factor Smart Carrier Hard Disk
12 Bays Disponibili
Capacità Disco
HDD Non Presente
Capacità Massima Storage interno:
Hot Plug LFF SAS HDD – 311.68 TB – 12+4+3 x 16 TB + 2 x 3.84 TB (with optional mid -tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA HDD – 311.68 TB – 12+4+3 x 16 TB + 2 x 3.84 TB (with optional mid -tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SATA SSD – 44.16 TB – 12+4+3 x 1.92 TB + 2 x 3.84 TB (with optional mid -tray and rear LFF drive cage, plus 2 SFF SSD rear)
Hot Plug LFF SAS SSD – 44.16 TB – 12+4+3 x 1.92 TB + 2 x 3.84 TB (with optional mid -tray and rear LFF drive cage, plus 2 SFF SSD rear)
NOTE: 2x m.2 drives are supported on the Primary Riser.
NOTE: uFF drives are also supported.
Controller on board
1 x HPE Smart Array P816i-a SR Gen10 Controller Module comprensivo di modulo battera 96W con cavo da 145mm
Controller On Board
SATA/SAS
Slot di espansione
1 – PCIe 3.0, X8, X8, Full-height, full-length slot, Proc 1
2 – PCIe 3.0, X16, X16, Full-height, full-length slot, Proc 1
3 – PCIe 3.0, X8, X8, Full-height, half-length slot, Proc 1
NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.
NOTE: This riser also supports dual m.2 cards.
1 – PCIe 3.0, X8, X8, Full-height, full-length slot, Proc 2
2 – PCIe 3.0, X16, X16, Full-height, full-length slot, Proc 2
3 – PCIe 3.0, X8, X8, Full-height, half-length slot, Proc 2
Scheda di rete
HPE Ethernet 1Gb 4-port 366FLR Adapter
Dispositivi
La configurazione non prevede lettore ottico
NB: per aggiungere ottico acquistare anche opzione 826708-B21
Grafica
Integrated Video Standard
• Video modes up to 1920 x 1200@60Hz (32 bpp)
• 16MB Video Memory
HPE iLO 5 on system management memory
• 32 MB Flash
• 4 Gbit DDR 3 with ECC protection
Interfacce:
Serial: Optional, rear
Display Port: 1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard
FlexibleLOM Network Ports: 4 x 1 Gb ports shipping standard with optional FlexibleLOM or stand up card
HPE iLO Remote Management Network Port : 1 Gb Dedicated
Front iLO Service Port: 1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required, 880123-B21)
Micro SD Slot: 1 Micro SD
NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.
USB 3.0: Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis
SID (Systems Insight Display) Optional
NOTE: Not shipping as standard. Available as a CTO option or as a field upgrade (826703-B21).
Ventole:
Standard – fan types included
NOTE: 1P models typically ship with 4 standard fans. The second processor option kit contains 2 additional fans. 1P Models have (4) (N+1 redundancy standard).
NOTE: 2P models typically ship with 6 standard fans. 2P Models have (6) (N+1 redundancy standard).
NOTE: The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.
NOTE: The 8LFF chassis ships with 6 standard fans as standard.
NOTE: High performance fan kit is available to meet ambient temperature environments.
NOTE: High performance fan kits are required for rear drives, Graphics (GPU) card or NVMe configurations.
Alimentatore
2 x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
NOTE: Available in 94% efficiency.
Massimo 2 alimentatori
Input Requirements (per power supply)
Rated Line Voltage 100 to 120 VAC
200 to 240 VAC
Maximum: For 800W Power Supply: 3207 BTU/hr (at 100 VAC), 3071 BTU/hr (at 200 VAC), 3112 BTU/hr (at 240 VAC) for China Only
Software certificato
Operating Systems and Virtualization Software Support for ProLiant Servers
Windows Server 2019
Windows Server 2012 R2 (Most Recent Version)
Windows Server 2016 (Most Recent Version)
VMware ESXi 6.0 U3
VMware ESXi 6.5 and U1 upon release
CentOS
Red Hat Enterprise Linux (RHEL) 6.9 and 7.3
SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2
Canonical Ubuntu
ClearOS
HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow.
NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost.
For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.
NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server. http://www.hpe.com/info/ossupport
Gestione del sistema
Integrated Lights-Out 5 (iLO 5) management processor (No Licence) / No OneView or Insight Control
Dimensioni
8.73 x 44.55 x 73.02 cm
(H x W x D)
Peso:
14.9 kg circa
Periodo e tipo garanzia
Garanzia pezzi per 3 anni/Manodopera per 3 anni/In sede il giorno lavorativo successivo per 3 anni
Include anche:
HPE 2U LFF Easy Install Rail Kit , HPE DL38x Gen10 M.2 1x PCIe x16 2 x PCIe x8 Primary Riser Kit FIO
N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita
