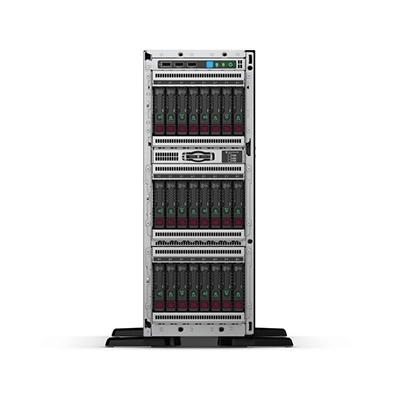

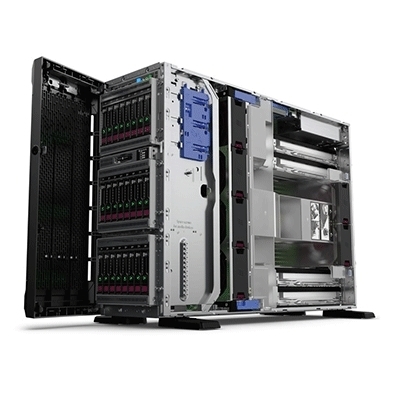

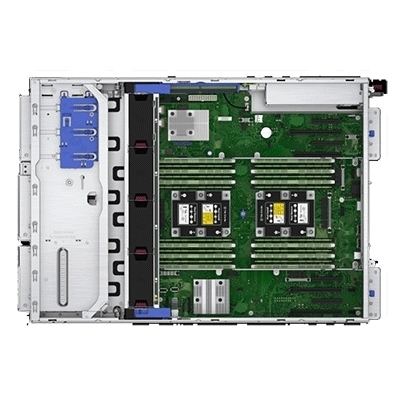

SERVER HPE P21786-421 ML350 GEN10 TOWER XEON 3206R 8C 1.9GHZ 16GBDDR4 S100I NOHDD 4X3.5 HS NOODD 4GLAN 1X500W GAR3Y FINO:07/02

Descrizione

SERVER HPE P21786-421 ML350 GEN10 TOWER XEON 3206R 8C 1.9GHZ 16GBDDR4 S100I NOHDD 4X3.5 HS NO OPTICAL DISK (NOODD) 4GLAN 1X500W GAR3Y

HPE ProLiant ML350 Gen10 Tower Intel Xeon-B 3206R 8-Core (1.90GHz 11MB) 16GB (1 x 16GB) PC4-2933Y-R DDR4 RDIMM 4 x Hot Plug 3.5in Dynamic Smart Array S100i SATA 500W 3yr Next Business Day Warranty

Struttura
Tower 4U

Serie
ML350-GEN10

Processore
1 x HPE Intel Xeon-B 3206R 8-Core (1.90GHz 11MB L3 Cache) Processor Kit

Numero di processori base
1

Processori Max
2

Cache Totale
11MB

Memoria RAM base
16GB (1 x 16GB) 2933MHz RDIMM

Memoria Base
16GB

Memoria RAM max.
Type: HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)
DIMM Slots Available: 24, 12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM) – 3 TB, 24 x 128 GB LRDIMM @ 2933 MT/s
Maximum capacity (RDIMM) – 1.5 TB – 24 x 64 GB RDIMM @ 2933 MT/s

NOTE: The maximum memory by socket is limited by the processor selection.
NOTE: Mixing of RDIMM and LRDIMM memory is not supported.

Alloggiamenti RAM (totali/disponibilità)
24/23 con 2 processori installati

Tipo disco fisso
4x SATA/SAS Hot Plug LFF (3,5”)
4 Baie disponibili Standard LFF Hot Plug – Upgradabile a 12 Baie (Con ausilio di cassetti aggiuntivi HDD Cage Kit (874566-B21))

Capacità Disco
HDD Non Presente

Maximum Internal Storage
Hot Plug LFF SAS – 168.0 TB – 12 x 14 TB
Hot Plug LFF SATA – 168.0 TB – 12 x 14 TB
Hot Plug LFF SAS SSD – 46.08 TB – 12 x 3.84 TB
Hot Plug LFF SATA SSD – 46.08 TB – 12 x 3.84 TB

Controller on board
Software RAID HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.
NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.
NOTE: The S100i uses 14 embedded SATA ports.

Il controller integrato non è supportato da vMware

Controller On Board
SATA

Dispositivi Ottici
La configurazione originale non prevedere lettore ottico:
Per aggiungere il dispositivo Ottico è richiesto anche Optional slim-line DVD-ROM/DVD-RW up to 1 cage KIT (874577-B21)

Slot di espansione
8 PCIe slots

Expansion Slots
Slot 1: PCIe 3.0 X16 X16 Full-height, full-length slot, Proc 1
Slot 2: PCIe 3.0 X4 X8 Full-height, full-length slot, Proc 1
Slot 3: PCIe 3.0 X16 X16 Full-height, full-length slot, Proc 1
Slot 4: PCIe 3.0 X4 X8 Full-height, full-length slot, Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.
NOTE: Slot 4 is routed from the PCH.

Slot 5: PCIe 3.0 X16 X16 Full-height, full-length slot, Proc 2
Slot 6: PCIe 3.0 X8 X8 Full-height, full-length slot, Proc 2
Slot 7: PCIe 3.0 X16 X16 Full-height, full-length slot, Proc 2
Slot 8: PCIe 3.0 X8 X8 Full-height, full-length slot, Proc 2

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.
NOTE: Max. 8 PCIe slots are available on the ML350 Gen10.

Grafica
Integrated Matrox G200eH2 with 16MB Video RAM

Scheda di rete
Scheda server a quattro (4) porte HPE Embedded 1Gb Ethernet 4-port Adapter

Interfacce
Serial: 1 standard (at system rear)
VGA Port: 1 standard (at system rear)
Display Port: 1 standard (at system rear)
Embedded Network Ports: 4 x 1 Gb ports shipping standard, with optional stand up card
HPE iLO Remote Management Network Port: 1 Gb Dedicated
Front iLO Service Port: 1 standard
Micro SD Slot: 1 Micro SD (internal)

NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB 3.0/2.0:
6 total, standard: 2 front (USB 3.0), 2 rear (USB 3.0), 2 internal (1 x USB 3.0 & 1 x USB 2.0)

Alimentatore
1 x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit Ridondabile

Massimo 2 alimentatori

Ventole:
2 standard fans; Optional redundant fan cage kit (874572-B21, add’l 4 fans)

Software certificato
Windows Server 2019
Windows Server 2012 R2 (Most Recent Version)
Windows Server 2016 (Most Recent Version)
VMware ESXi 6.0 U3
VMware ESXi 6.5 and U1 upon release
Red Hat Enterprise Linux (RHEL) 6.9 and 7.3
SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2
ClearOS

NOTE: ClearOS allows you to build a fully functional server that is just right for you at no upfront cost. For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

CentOS

Dimensioni
(H x W x D)
46.25 (H) x 64.8 (D) x 17.4 (W) cm
17.4 (H/4U) x 64.8 (D) x 44.5 (W) cm 6.85 – Rack (Solo sistema)
4.445 (H/1U) x 69.2 (D/without CMA. Depth with CMA: 83.5) x 45.2 (W) cm – Tower-to-Rack Conversion Kit (1U)

Peso:
Da 21 a 42 Kg Max

Rumorosità
Idle:
LWAd – 4.0 B Entry – 3.9 B Base – 4.4 B Perf
LpAm – 28 dBA Entry – 27 dBA Base – 31 dBA Perf

Operating:
LWAd – 4.2 B Entry – 4.3 B Base – 4.4 B Perf
LpAm – 29 dBA Entry – 30 dBA Base – 32 dBA Perf

Periodo e tipo garanzia
Garanzia sui componenti per 3 anni con invio delle spare part presso la sede del cliente in 24ore dall’identificazione del problema.

N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita.
