Descrizione
SERVER HPE P44720-421 ML30 GEN10+ TOWER XEON 4C E-2314 2.8GHZ 16GBDDR4 VROC 4X3.5 LFF HP NOHDD NO OPTICAL DISK (NOODD) 2GLAN 1X350W GAR
HPE ProLiant ML30 Gen10 Plus Intel Xeon E-2314 Quad-Core (2.80GHz 8MB) 16GB (1 x 16GB) DDR4 3200AA-E UDIMM 4 x Hot Plug 3.5in Large Form Factor Intel VROC RAID No Optical 350W 3yr Parts 1yr Onsite Warranty
Struttura
Tower
Serie
ML30 Gen10+
Processore
1 x HPE Intel Xeon E-2314 Quad-Core (2.80GHz 8MB, 65W) Processor
Processori Max
1
Frequenza:
2.8Ghz
Numero di core:
4
Cache Totale:
8MB
Chipset:
Intel® C256 Chipset
Memoria RAM base
(1x 16GB)
Memoria Base
16GB (1 x 16GB) 3200MHz UDIMM
Memoria RAM max.
64GB
Alloggiamenti RAM (totali/disponibilità)
4/3
Memoria massima e tipologia:
4 DIMMs (2 Channels/ 2 DIMMs per channel)
128GB (4 x 32GB UDIMM @3200 MT/s)
Memory Protection:
ECC
Tipo disco fisso

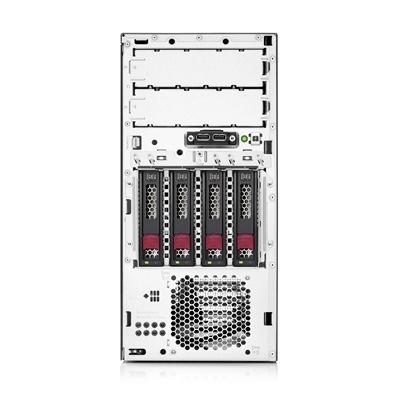

4x Hot Plug 3.5in Large Form Factor Smart Carrier Hard Disk
Capacità Disco
HDD Non Presente
Storage massimo configurabile:
Hot Plug HDD LFF SATA 72 TB 4 x 18 TB
Hot Plug HDD LFF SAS 72 TB 4 x 18 TB
Hot Plug SSD LFF SATA 3.84 TB 4 x 960 GB
Controller on board
1 x Intel® VROC SATA (formerly known as Intel® RSTe) (RAID 0/1/5/10) SATA Only)**
Supporta RAID 0/1/1+0/5
**NOTE: The Vroci controller limited to SATA RAID 0/1/1+0/5. No Cache Option.
Il controller integrato non è supportato da vMware
Per il supporto di SO per virtualizzazione prevedere aggiunta di controller discreto
Controller On Board
SATA
Slot di espansione
4x PICe 3.0 Full length/full height
Slot 1 – 1x PCIe 4.0 – Bus x16 – Connettore x16
Slot 2 – 1x PCIe 3.0 – Bus x4 – Connettore x8
Slot 3 – 1x PCIe 3.0 – Bus x4 – Connettore x16
Slot 4 – 1x PCIe 3.0 – Bus x4 – Connettore x8
Scheda di rete
Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
Dispositivi Ottici:
********* OTTICO NON PRESENTE *******
Opzionale: SATA 9.5mm DVD-RW/DVD-ROM Optical Drive Cod 726537-B21/726536-B21
NB: Nel caso in cui si aggiunga dispositivo ottico è necessario anche:
P06309-B21 – HPE ML30 Gen10 Slimline Optical Disk Drive Enablement Kit
Interfacce
1 Rear VGA port
USB 2.0 Ports 1 total (1 frontale)
USB 3.0 Ports 6 total (4 posteriori, 1 frontale, 1 interna)
Network RJ-45 (Ethernet) 2
Alimentatore
1 x HPE ML30 350W Energy Star 1.0 Power Supply FIO Kit (NON RIDONDABILE)
– BTU Rating PSU: For 350W Power Supply: 1452 BTU/hr (at 100 VAC), 1544 BTU/hr (at 200VAC)
Ventole:
1 X P06303-B21 HPE ML30 Gen10 Front PCI Fan and Baffle Kit
Grafica:
Integrated Video Standard
• Video modes up to 1920 x 1200 @60Hz (32 bpp)
• 16MB Video Memory
HPE iLO 5 On System Management Memory
• 32 MB Flash
• 4 Gbit DDR 3 with ECC protection
Software certificato
Microsoft Windows Server 2019: Essentials, Standard, Datacenter, Hyper-V
Microsoft Windows Server 2022: Essentials, Standard, Datacenter
Red Hat Enterprise Linux (RHEL): 8.4 (64 bit, includes KVM)
SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP3 (64 bit, includes KVM & Xen)
VMware ESXi: 7.0 U3
Notes: VMware supported only with Intel® Xeon® E processors, not supported with Intel® Pentium® processors. No Legacy Mode Support on VMWare. https://kb.vmware.com/s/article/84233
Notes: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.
https://www.hpe.com/us/en/servers/server-operating-systems.html.
Industry Standard Compliance
ACPI 6.1 Compliant
PCIe 3.0 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
VGA Port
USB 3.0 Compliant
USB 2.0 Compliant
SMBIOS 3.1
UEFI 2.6
ASHRAE A3/A4
Gestione del sistema
HPE Integrated Lights-Out 5 (iLO 5) management processor (No Licence) / No OneView or Insight Control
Dimensioni
36.83 x 17.50 x 47.50 cm
(HxWxD)
Peso:
Minimo 10.1/ Massimo 17.6 Kg
Periodo e tipo garanzia:
Garanzia pezzi per 3 anni/Manodopera per 1 anno/In sede per 1 anno
Standard Operating Temperature:
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed
Incluso anche:
No Keyboard or Mouse Included
N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita.
