Descrizione

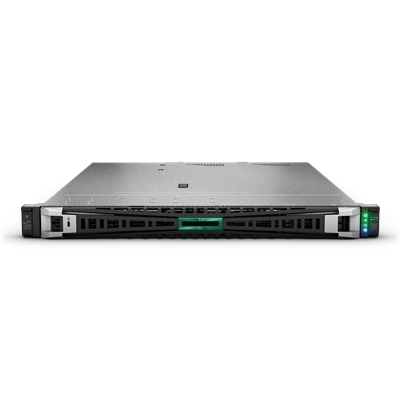

SERVER HPE P57687-421 DL320 GEN11 RACK 1U XEON 4410Y 12C 2.00GHZ 16GBDDR5 8X2.5 HS MR408I-O NO OPTICAL DISK (NOODD) 2GLAN 1000W GAR3Y
HPE ProLiant DL320 Gen11 Intel Xeon-S 4410Y 12-Core (2.00GHz 30MB) 16GB (1 x 16GB) PC5-4800B RDIMM 8 x Hot Plug 2.5in Small Form Factor x1 Tri-Mode Basic Carrier MR408i-o No Optical 1000W 3 Year Next Business Day Warranty
Struttura
Rack 1U
Serie
DL320 Gen11
Processore
1 x Intel Xeon-S 4410Y 12-Core (2.00GHz 30MB)
Numero di processori base
1
Processori Max
1
Numero di core
12 Core
Cache Totale
30MB
Chipset
Intel C741 Chipset
Memoria RAM base
16Gb (1X16GB)
Memoria Base
16 GB RDIMM Dual Rank 4800 MT/s (1x 16 GB)
NOTE: Funzionano a 4000 MT/s a causa delle limitazioni del processore.
Memoria RAM max.
HPE DDR5 Smart Memory Registered (RDIMM)
DIMM Slots: 16 DIMM Slots, 8 channels, 2 DIMMs per channel
Massima capacita (RDIMM) 2.04 TB 16 x 128 GB RDIMM @ 4800 MT/s
Tipo disco fisso
Hot Plug 2.5in Small Form Factor Smart Carrier Hard Disk
8+2 SFF SAS/SATA/NVMe (P52766-B21)
– Option1: HPE ProLiant DL320 Gen11 8SFF x1 Tri-Mode 24G U.3 BC Backplane Kit (P52743-B21)
– Option2: HPE ProLiant DL320 Gen11 8SFF x4 Tri-Mode 24G U.3 BC Backplane Kit (P52747-B21)
Capacità massima Storage:
Hot Plug SFF SAS HDD – 24.0 TB (8+2 x 2.4 TB)
Hot Plug SFF SATA HDD – 20.0 TB (8+2 x 2.0 TB)
Hot Plug SFF SAS SSD – 153.0 TB (8+2 x 15.3 TB)
Hot Plug SFF SATA SSD – 76.8 TB (8+2 x 7.68 TB)
Hot Plug SFF SAS HDD – 9.6 TB (4 x 2.4 TB)
Hot Plug SFF SATA HDD – 8.0 TB (4 x 2.0 TB)
Hot Plug SFF SAS SSD – 61.2 TB (4 x 15.3 TB)
Hot Plug SFF SATA SSD – 30.72 TB (4 x 7.68 TB)
Hot Plug SFF NVMe PCIe SSD – 153.6 TB (8+2 x 15.36 TB)
M.2 NVMe SSD – 3.84 GB (2 x 1.92 GB)
M.2 SATA SSD – 960 GB (2x 480 GB)
Capacità Disco
HDD Non Presente
Controller on board
1 x HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
1 x HPE Megacell Battery con cavo
Controller On Board
SATA/SAS
Slot di espansione
1 (Primary Riser) – PCIe 5.0 – x16 x16 FHHL
2 (Secondary Riser) – PCIe 5.0 – x16 x16 FHHL
Notes: Slot-1, by default, is with the riser.
OCP Expansion Slots
1 (OCP 3.0) with Wake on LAN (WoL) and iLO sideband (shared NIC) capability – PCIe 5.0 – x16 x16
Dispositivi
La configurazione originale non prevede il lettore ottico.
Notes:
– If Optical Drive is selected with 8SFF CTO Server, then ‘1U DP/USB/ODD Blank Kit’ must be selected.(P48926-B21)
HPE iLO Remote Mgmt Port:
1 GbE Dedicated
Front iLO Service Port
1 standard
USB
4 standard on all models: 1 front(USB 3.2 Gen1), 2 rear (USB 3.2 Gen1), 1 internal (USB 2.0)
+1 optional USB 2.0 front in 4LFF & 8SFF
Notes: USB 3.2 Gen1 is referred to as USB 3.0 in some marketing documents.
Interfacce:
Serial
1 port – Optional
Video
1 Front – Display port (optional)
1 Rear – VGA port (standard on all models)
Notes: If both ports are used simultaneously, they will display the same image.
Network Ports
HPE embedded 2-port 1 GbE Ethernet adapter
Ventole:
7 – Standard Hot Plug
Sicurezza:
TPM (Trusted Platform Module)
Notes:
– Enabling TPM 2.0 no longer requires TPM module option kit for Gen11 since It is an embedded feature.
Alimentatore
HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
Notes: Available with 96% efficiency.
Massimo 2 alimentatori
Software certificato
Microsoft Windows Server
VMware ESXi
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Canonical Ubuntu
Oracle Linux and Oracle VM
Citrix
Community Enterprise Linux (CentOS, Alma Linux, Rocky Linux)
Gestione del sistema
Integrated Lights-Out 6 (iLO 6) management processor (No Licence) / No OneView or Insight Control
Dimensioni
(4.28 x 43.46 x 60.51 cm)
(H x W x D)
Peso:
12.00 Kg circa
Certificazioni:
European Union Erp Lot 9 Regulation
Energy Star
SMBIOS 3.2
Redfish API
IPMI 2.0
Secure Digital 4.0
Embedded TPM 2.0 Support
Periodo e tipo garanzia
Supporto di fabbrica per 3 anni Best Effort sulle parti del server
Per Informazioni: https://www.hpe.com/us/en/search-results.html?page=1&q=servers%20warranty&autocomplete=0
Include anche:
Easy Install w/o CMA
N.B.: Questa scheda è da ritenersi puramente informativa e non contiene alcun tipo di garanzia né implicita né esplicita
