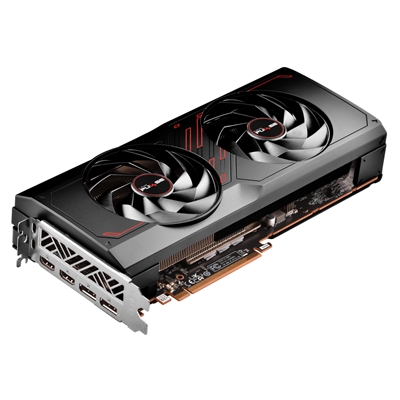

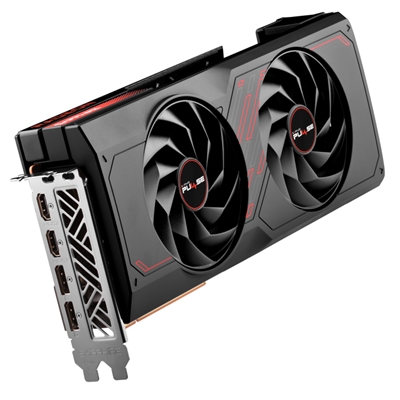

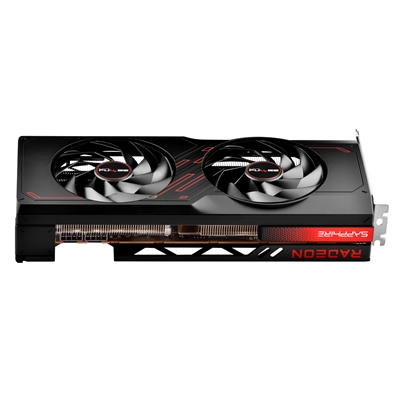

SVGA SAPPHIRE PULSE AMD RADEON RX 7800 XT GAMING 16GB GDDR6 2XHDMI 2XDP 11330-02-20G

Descrizione

SVGA SAPPHIRE PULSE AMD RADEON RX 7800 XT GAMING 16GB GDDR6 2XHDMI 2XDP 11330-02-20G

GPU
AMD Radeon™ RX 7800 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock
Boost Clock: Up to 2430 MHz
Game Clock: Up to 2124 MHz

Stream Processors
3840

Compute Units
60 CU (with RT+AI Accelerators)

Infinity Cache
64MB

Ray Accelerators
60

Memory Size/Bus
16GB/256 bit GDDR6

Memory Clock
19.5 Gbps Effective

Displays
Maximum 4 Displays

Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320

Interface
PCI-Express 4.0 x16

Output
2x HDMI
2x DisplayPort

BIOS Support
UEFI

Game Index
4K

Sapphire Features
Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Angular Velocity Fan Blade
Dual-Ball Bearing Fans
TriXX Supported
TriXX Boost

AMD Features
AMD RDNA™ 3 Architecture
60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
64MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1Support
AMD Radiance Display™ Engine
16GB GDDR6 on 256-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ technology

Cooling
2 Fans

Form Factor
2.5 slot, ATX
Dimension: 280(L)X 128.75(W)X 52.57 (H)mm

Power Consumption
266W Total Board Power

OS
Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement
Minimum 700 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
