Descrizione

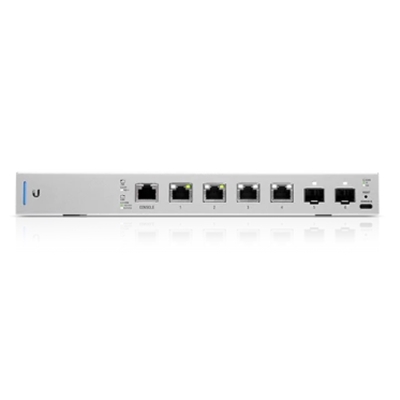

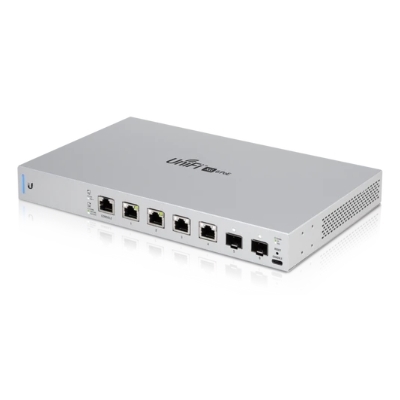

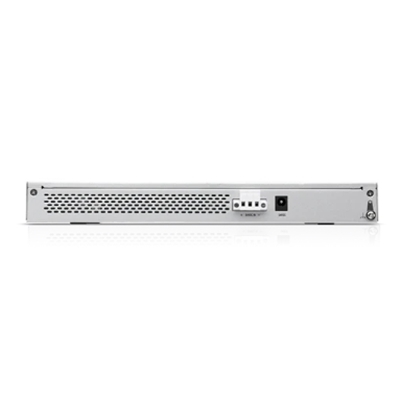

SWITCH 10GBPS 6P UBIQUITI UNIFI US-XG-6POE 2PXSFP + 4PX10GBPS POE – 802.3BT

Mechanical
Dimensions: 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25″)
Weight: 1.3 kg (2.87 lb)
Interfaces:
Networking:
– (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports
– (2) 1/10G SFP+ Ethernet Ports
Management:
– Ethernet In-Band (1) RJ45
– Serial Port Out-of-Band
– (1) USB Type C Port Out-of-Band
Power Method: 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
Power Supply: External AC/DC Adapter (Included) or DC Power Source
Supported Voltage Range: 44 to 57VDC
Max. Power Consumption (Excluding PoE Output): 40W
LEDs:
– System: Status
– RJ45 Data Ports: PoE; Speed/Link/Activity
– SFP+ Data Ports: Link/Activity
ESD/EMP Protection: Air: ± 18 kV, Contact: ± 12 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 45° C (23 to 113° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

POE
PoE Interfaces: PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎
Max. PoE++ Wattage per Port by PSE: 60W
Voltage Range PoE Mode: 44-57V
Voltage Range PoE+/PoE++ Mode: 50-57V
