Descrizione

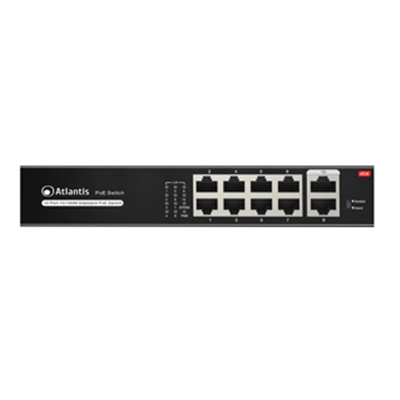

SWITCH 10P LAN 10/100M ATLANTIS A02-F10P8-120W DI CUI 8P POE FINO 120W – RACK 19” – METALLO
Standard
– IEEE 802.3 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3af (Mode A) [PoE: pin 3,6 for power- and pin 1,2 for power+] up to 15W
– IEEE 802.3at (Mode A) [PoE: pin 3,6 for power- and pin 1,2 for power+] up to 30W
– IEEE 802.3x Flow Control
Network Media
– 10Base-T: UTP category 3, 4, 5 cable Unshielded Twisted Pair (UTP) Cable
– 100Base-TX: UTP category 5, 5e cable Unshielded Twisted Pair (UTP) Cable
– PoE port: UTP category 5 Unshielded Twisted Pair (UTP) Cable
Protocol
CSMA/CD
Topology
Star
Ports
– 2 x 10/100 Mbps Auto-Negotiation, Auto-MDIX (port 9-10)
– 8 x 10/100 Mbps Auto-Negotiation, Auto-MDIX PoE Ports (port 1-8)
Switch mode
Using this button switch the customer can select, for PoE ports:
– (S): Standard Mode (max 30W, 100mt @100Mbps)
– (E): Long Distance Mode (max 15.4W, 200mt @10Mbps) with VLAN
Network Data Transfer Rate
– Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex)
– Fast Ethernet: 100Mbps (half duplex), 200Mbps (full- duplex)
Advanced Features
– VLAN, Long Trasmission Distance (200mt @10Mbps)
– Lightning Protection: 4KV 8/20 μs
– Protection Level: IP30
Diagnostic LEDs
Power, Link/ACT, Extended/VLAN
PoE (Power over Ethernet)
– Up to 30W per port
– PoE power up to 115W for all 8 PoE ports
– PD classification identify
– PoE Over Current Protection
– PoE Circuit sorting protection
Filtering Address Table
1K entries per device
RAM Buffer Size
768Kbit
Power Adapter
Input: 100-240VAC, 50-60Hz, 2,2A max
Power Consumption
– 5 Watt (Stand-By mode without PD device connected)
– 120 Watt (Maximum with 115W PoE device connected)
Dimensions (WxDxH)
195mm x 130mm x 40mm
Weight
800g
Temperature Range
– Operating Temperature: 0° ~ 40°C
– Storage Temperature: -10° ~ 60°C
Humidity
– Operating Humidity: 10% ~ 90% non-condensing
– Storage Humidity: 5% ~ 95% non-condensing
