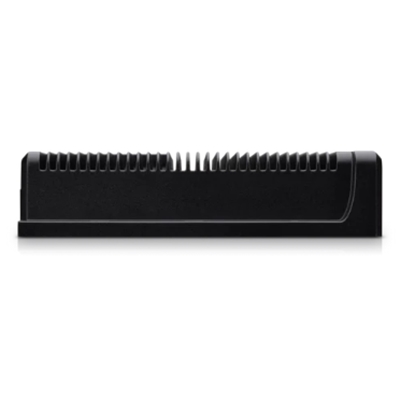

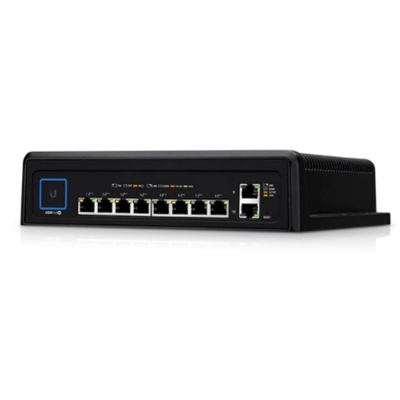

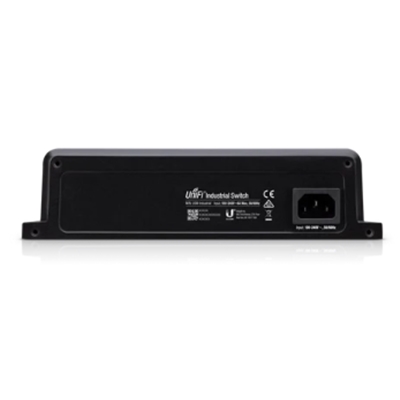

SWITCH 10P LAN GIGABIT UBIQUITI USW-INDUSTRIAL DI CUI 8P POE++ (FINO A 60W X PORTA)

Descrizione

SWITCH 10P LAN GIGABIT UBIQUITI USW-INDUSTRIAL DI CUI 8P POE++ (FINO A 60W X PORTA)

Mechanical
Dimensions: 254 x 235 x 60 mm (10 x 9.25 x 2.36″)
Weight: 3.85 kg (8.49 lb)
Enclosure Characteristics: Die-Cast Aluminum (ADC12) with Black Powder Coated Finish
Interfaces:
– Networking: (8) 10/100/1000 PoE++ RJ45 Ports, (2) 10/100/1000 RJ45 Ports
– Management: Ethernet In-Band
Total Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Power Method: 100 – 240 VAC, 50/60 Hz Universal Input
Power Supply: AC/DC, Internal, 450W DC
Supported Voltage Range: AC Input: 100 to 240VAC, Max. 6A
Max. Power Consumption (Excluding PoE Output): 20W
LEDs:
– System: Status
– RJ45 Ports: PoE, Speed/Link/Activity
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature:
– Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F)
– Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: FCC, IC

PoE
PoE Interfaces: PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎
Max. PoE Wattage per Port by PSE: PoE++ 60W
Voltage Range PoE Mode: 50-57V
Max. Total PoE Power Budget: 430W
