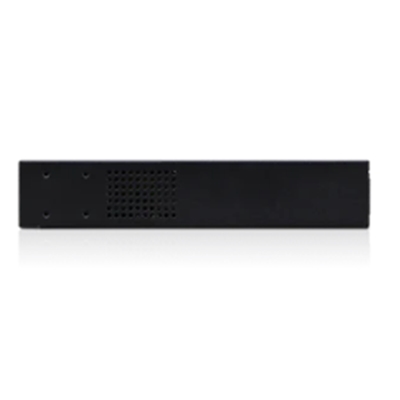

SWITCH 16P LAN GIGABIT UBIQUITI EDGESWITCH ES-16-150W POE+ – 2X SFP- MANAGED- 150W

Descrizione

SWITCH 16P LAN GIGABIT UBIQUITI EDGESWITCH ES-16-150W POE+ – 2X SFP- MANAGED- 150W

Mechanical
Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
Weight:
– Without Mount Brackets :2.80 kg (6.17 lb)
– With Mount Brackets: 2.89 kg (6.37 lb)

Hardware
Networking Interfaces:
– (16) 10/100/1000 Mbps RJ45 Ports
– (2) 1 Gbps SFP Ports
Management Interface:
– UART Console Out-of-Band,
– Ethernet In-Band
PoE Interfaces: PoE/PoE+ (pins 1, 2+; 3, 6-), 24VDC Passive PoE (pins 4, 5+; 7, 😎
Total Non-Blocking Line Rate: 18 Gbps
Max. Power Consumption: 150W
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W DC
LEDs Per Port:
– RJ45 Data Ports: PoE, Speed/Link/Activity
– SFP Data Ports: Speed/Link/Activity
Voltage Range:
– PoE+ Mode: 50-57V
– 24V Passive PoE: 20-27V
Max. Wattage per Port:
– PoE+: 34.2W
– Passive PoE: 17W
Rack-Mount: Yes, 1U High
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
