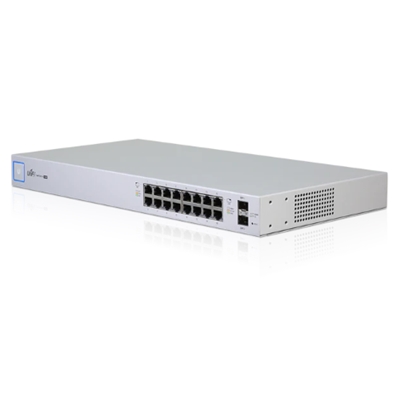

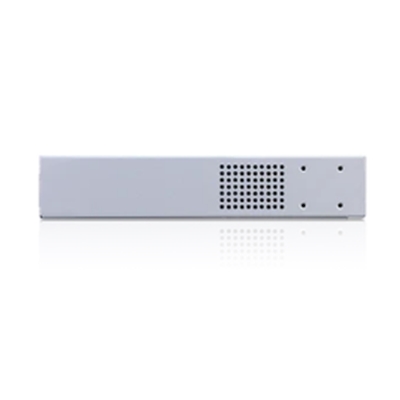

SWITCH 16P LAN GIGABIT UBIQUITI UNIFI US-16-150W MANAGED 2P SFP -SUPP. POE-
Mechanical
Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
Weight:
– Rack-Mount Brackets Excluded: 2.80 kg (6.17 lb)
– Rack-Mount Brackets Included: 2.89 kg (6.37 lb)
Networking Interfaces:
– (16) 10/100/1000 Mbps RJ45 Ethernet Ports
– (2) 1 Gbps SFP Ethernet Ports
Management Interface: Ethernet In-Band
Total Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
MAC Address Table: 16384
Maximum Aggregations: 6
Monitoring Sessions: 1
Maximum VLANs: 255
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 150W DC
Max. Power Consumption:
– Including PoE Output: 150W
– Excluding PoE Output: 28W
LEDs Per Port:
RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
Sound Level:
– Fan Level: 0: 1.7 dBr
– Fan Level: 1, 2, 3: 10.8 dBr
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC
PoE+ Per Port
PoE Interfaces: PoE/PoE+ (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 😎
Max. PoE+ Wattage per Port by PSE: 34.2W
Voltage Range PoE+ Mode: 50–57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V
