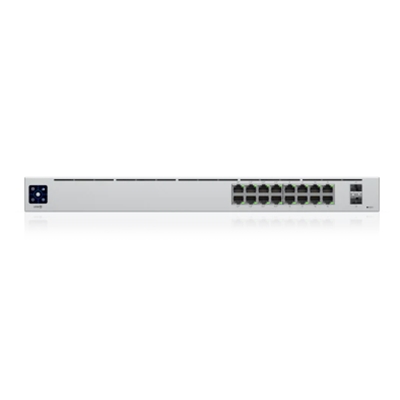

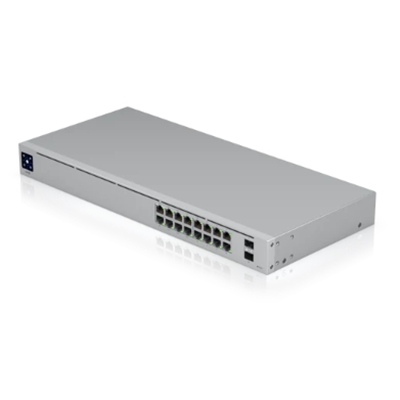

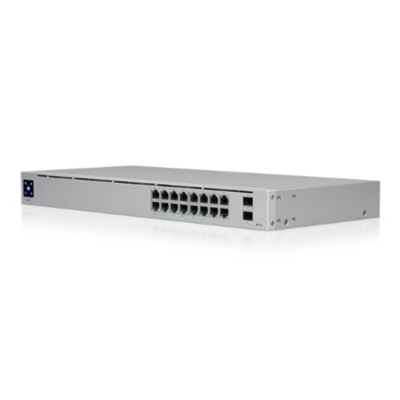

SWITCH 16P POE LAN GIGABIT UBIQUITI USW-16-POE GEN2 42W – DI CUI 2P SFP

Descrizione

SWITCH 16P POE LAN GIGABIT UBIQUITI USW-16-POE GEN2 42W – DI CUI 2P SFP

Mechanical
Dimensions: 424.4 x 200 x 43.7 mm (16.71 x 7.87 x 1.72″)
Weight:
– Without Rackmount Brackets: 2.80 kg (6.17 lb)
– With Rackmount Brackets: 2.89 kg (6.37 lb)

Hardware
Networking Interfaces:
– (16) 10/100/1000 RJ45 Ports
– (2) 1G SFP Ethernet Ports
Management Interfaces: Ethernet In-Band
Total Non-Blocking Throughput: 18 Gbps
Switching Capacity: 36 Gbps
Forwarding Rate: 26.78 Mpps
Power Method: 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 60W
Supported Voltage Range: 100 to 240VAC
Max. Power Consumption (Excluding PoE Output): 18W
LEDs:
– RJ45 Data Ports: PoE; Speed/Link/Activity
– SFP Data Ports: Link/Activity
ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration: ETSI300-019-1.4 Standard
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC

PoE
Total Available PoE: 42W
PoE Interfaces: Ports 1-8: PoE/PoE+ (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE PoE+: 32W
Voltage Range PoE Mode: 44-57V
Voltage Range PoE+ Mode: 50-57V
