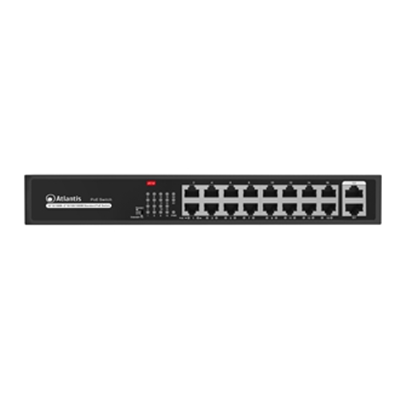

SWITCH 18P ATLANTIS A02-G18P16-200W DI CUI 2P GIGABIT + 16P 10/100M POE FINO 200W – RACK 19” – METALLO

Descrizione

SWITCH 18P ATLANTIS A02-G18P16-200W DI CUI 2P GIGABIT + 16P 10/100M POE FINO 200W – RACK 19” – METALLO

Standard
– IEEE 802.3 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3af (Mode A) [PoE: pin 3,6 for power- and pin 1,2 for power+] up to 15W
– IEEE 802.3at (Mode A) [PoE: pin 3,6 for power- and pin 1,2 for power+] up to 30W
– IEEE 802.3x Flow Control
– IEEE 802.3ab 1000Base-T Gigabit Ethernet

Network Media
– 10Base-T: UTP category 3, 4, 5 cable Unshielded Twisted Pair (UTP) Cable
– 100Base-TX: UTP category 5, 5e cable Unshielded Twisted Pair (UTP) Cable
– 1000Base-T: Cat5e or later UTP (≤100 meter)
– PoE port: UTP category 5 Unshielded Twisted Pair (UTP) Cable

Protocol
CSMA/CD

Topology
Star

Ports
– 2x 10/100/1000 Mbps Auto-Negotiation, Auto-MDIX (port G1-G2)
– 16x 10/100 Mbps Auto-Negotiation, Auto-MDIX PoE Ports (port 1-16)

Switch mode
Using this button switch the customer can select, for PoE ports:
– (S): Standard Mode (max 30W, 100mt @100Mbps)
– (E): Long Distance Mode (max 15.4W, 200mt @10Mbps) for ports (9-16)

Network Data Transfer Rate
– Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex)
– Fast Ethernet: 100Mbps (half duplex), 200Mbps (full- duplex)
– Gigabit Ethernet: 2000Mbps (full- duplex)

Advanced Features
– Long Trasmission Distance (200mt@ 10Mbps) for ports (9-16)
– Lightning Protection: 4KV 8/20 μs
– Protection Level: IP30
– Jumbo Frames (9,6K) for Gigabit Ethernet Ports

Diagnostic LEDs
Power, Link/ACT, PoE

PoE (Power over Ethernet)
– Up to 30W per port
– PoE power up to 185W for all 16 PoE ports
– PD classification identify
– PoE Over Current Protection
– PoE Circuit sorting protection

Filtering Address Table
16K entries per device

RAM Buffer Size
4000Kbit

Power Adapter
Input: 100-240VAC, 50-60Hz, 4,1A max

Power Consumption
– 15 Watt (Stand-By mode without PD device connected)
– 200 Watt (Maximum with 185W PoE device connected)

Noise level
Less 40 dB (with FAN)

Dimensions (WxDxH)
270mm x 181mm x 44,5mm

Weight
1700g

Temperature Range
– Operating Temperature: 0° ~ 40°C
– Storage Temperature: -10° ~ 60°C

Humidity
– Operating Humidity: 10% ~ 90% non-condensing
– Storage Humidity: 5% ~ 95% non-condensing
