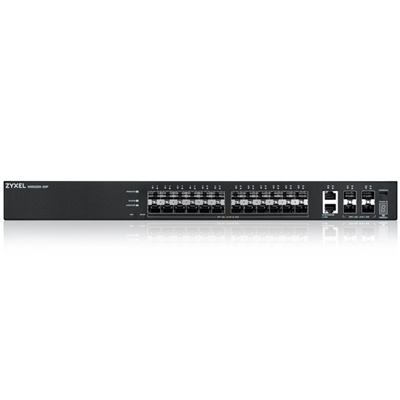

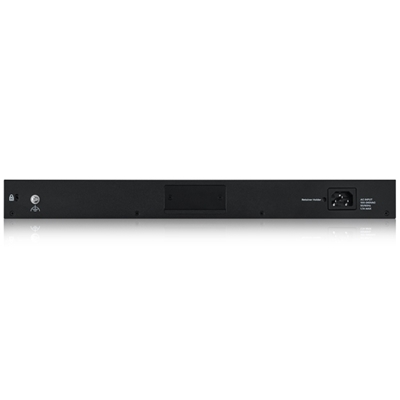

SWITCH 24P GIGABIT +2P 10GBE MG+4P 10 GIGABIT SFP+ ZYXEL XGS2220-30F-EU0101F LAYER 3 LITE STACKABLE – RACK

Descrizione

SWITCH 24P GIGABIT +2P 10GBE MG+4P 10 GIGABIT SFP+ ZYXEL XGS2220-30F-EU0101F LAYER 3 LITE STACKABLE – RACK

General
Product name: 24-port SFP L3 Access Switch with 6 10G Uplink
Switch class: Layer 3 Access

Port Density
Total port count: 30
100/1000 Mbps: –
100M/1G/2.5G/5G/10G Ethernet (RJ-45): 2
Gigabit SFP: 24
1G SFP/10G SFP+: 4

Performance
Switching capacity (Gbps): 168
Forwarding rate (Mpps): 125
Packet buffer (byte): 2 M
MAC address table: 32 K
Jumbo frame (byte): 9 K
L3 forwarding table:
– Max. 1 K IPv4 entries
– Max. 512 IPv6 entries
Static route: 64
IP interface: 32
Flash/RAM: 64 MB/1 GB

Power
Input: 100 – 240 V AC, 50/60 Hz
Max. power consumption (watt): 66

Physical Specifications
Item:
– Dimensions (WxDxH) (mm): 441 x 270 x 44
– Weight (kg): 3.5
Packing:
– Dimensions (WxDxH) (mm): 616 x 355 x 107
– Weight (kg): 4.83
Included accessories:
– Power cord
– Rack mounting kit

ESD/Surge Protection
Ethernet port surge protection: 2 KV
Power supply surge protection:
– Line-GND: 2 KV
– Line-Line: 1 KV
Ethernet port ESD protection (air/contact): 8 KV/6 KV

Environmental Specifications
Operating:
– Temperature: -20°C to 50°C
– Humidity: 10% to 95% (non-condensing)
Storage:
– Temperature: -40°C to 70°C
– Humidity: 10% to 90% (non-condensing)
MTBF (hr): 352,923
Heat dissipation (BTU/hr): 225.06
Acoustic noise @ 25°C (min/max, dBA): 28.82
