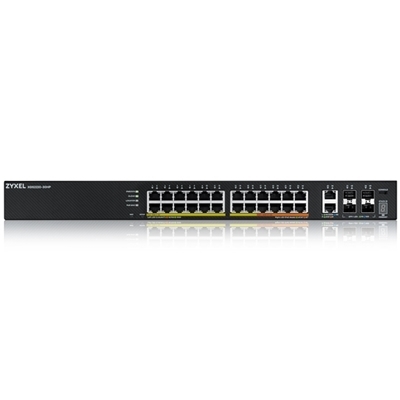

SWITCH 24P GIGABIT POE+ 2P 10GBE MG POE+4P 10 GIGABIT SFP+ ZYXEL XGS2220-30HP-EU0101F LAYER 3 STACKABLE – RACK

Descrizione

SWITCH 24P GIGABIT POE+ 2P 10GBE MG POE+4P 10 GIGABIT SFP+ ZYXEL XGS2220-30HP-EU0101F LAYER 3 STACKABLE – RACK

General
Product name: 24-port GbE L3 Access PoE+ Switch with 6 10G Uplink (400 W)
Switch class: Layer 3 Access

Port Density
Total port count: 30
100/1000 Mbps: 24
100M/1G/2.5G/5G/10G Ethernet (RJ-45): 2
Gigabit SFP: –
1G SFP/10G SFP+: 4

PoE
PoE ports: 26
Total PoE budget (watts): 400
IEEE 802.3at (PoE+): Port 1-16
IEEE 802.3bt (PoE++, 60 W):
– 100/1000 Mbps: Port 17 – 24
– 1G/2.5G/5G/10G: Port 25 – 26

Performance
Switching capacity (Gbps): 168
Forwarding rate (Mpps): 125
Packet buffer (byte): 2 M
MAC address table: 32 K
Jumbo frame (byte): 9 K
L3 forwarding table:
– Max. 1 K IPv4 entries
– Max. 512 IPv6 entries
Static route: 64
IP interface: 32
Flash/RAM: 64 MB/1 GB

Power
Input: 100 – 240 V AC, 50/60 Hz
Max. power consumption (watt): 477

Physical Specifications
Item:
– Dimensions (WxDxH) (mm): 441 x 330 x 44
– Weight (kg): 4.35
Packing:
– Dimensions (WxDxH) (mm): 580 x 503 x 95
– Weight (kg): 5.77
Included accessories:
– Power cord
– Rack mounting kit

ESD/Surge Protection
Ethernet port surge protection: 2 KV
Power supply surge protection:
– Line-GND: 2 KV
– Line-Line: 1 KV
Ethernet port ESD protection (air/contact): 8 KV/6 KV

Environmental Specifications
Operating:
– Temperature: -20°C to 50°C
– Humidity: 10% to 95% (non-condensing)
Storage:
– Temperature: -40°C to 70°C
– Humidity: 10% to 90% (non-condensing)
MTBF (hr): 268,305
Heat dissipation (BTU/hr): 1626.57
Acoustic noise @ 25°C (min/max, dBA): 30.21
