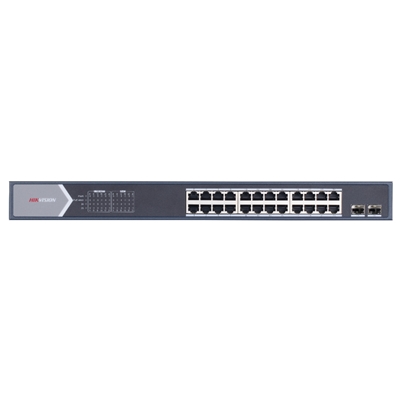

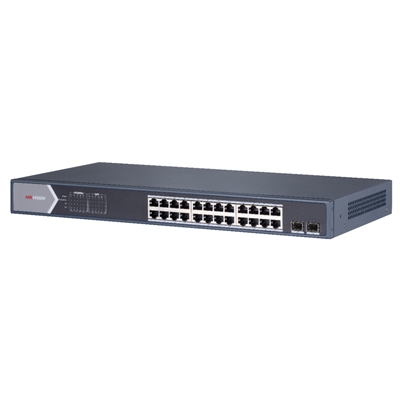

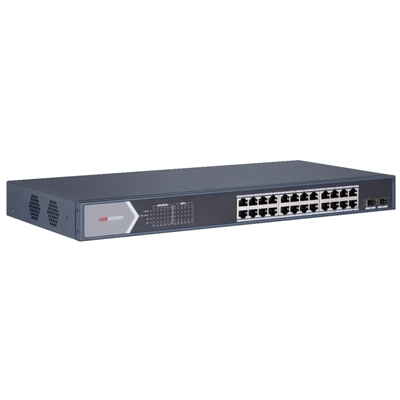

SWITCH 24P LAN GIGABIT HIKVISION DS-3E0526P-E/M 24P POE + 2P UPLINK – DESKTOP – QOS – 225W

Descrizione

SWITCH 24P LAN GIGABIT HIKVISION DS-3E0526P-E/M 24P POE + 2P UPLINK – DESKTOP – QOS – 225W

Network Parameters
Port Number:
– 24 × Gigabit PoE ports
– 2 × Gigabit fiber optical ports
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding Mode: Store-and-forward switching
MAC Address Table: 8 K
Internal Cache: 4.1 Mbits
Switching Capacity: 52 Gbps
Packet Forwarding Rate: 38.688 Mpps

PoE Power Supply
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+)
PoE Port: Ports 1 to 24
Max. Port Power: 30 W
PoE Power Budget: 225 W

General
Dimension (W × H × D): 440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity: 5% to 95% (no condensation)
Gross Weight: 4.120 kg (9.08 lb)
Net Weight: 2.920 kg (6.44 lb)
Power Consumption In Idle: 25 W
Shell: Metal material, fan-free design
Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity: 5% to 95% (no condensation)
Power Supply: 100 to 240 VAC, 50/60 Hz, 4 A (Max)
Max. Power Consumption: 250 W

Approval
EMC: FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 8)
Safety: UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2018)
Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2007)
