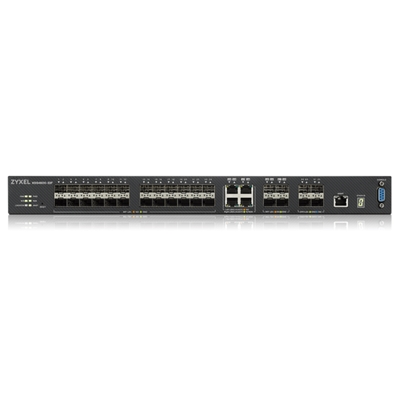

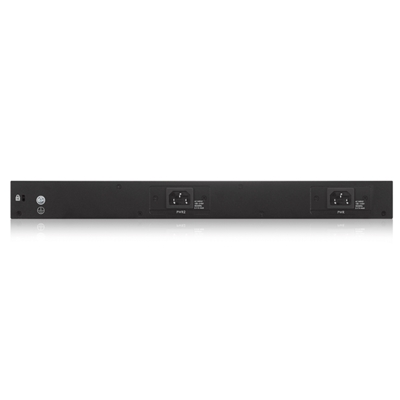

SWITCH 24P LAN GIGABIT SFP + 4P GIGABIT DUAL+4P 10G SFP+ ZYXEL XGS4600-32F-ZZ0102F MANAGED L3 -RACK

Descrizione

SWITCH 24P LAN GIGABIT SFP + 4P GIGABIT DUAL+4P 10G SFP+ ZYXEL XGS4600-32F-ZZ0102F MANAGED L3 -RACK

Models
Product name: 28-port GbE L3 Aggregation Fiber Switch with 4 SFP+ Uplink
Switch class: Layer 3 Aggregation

Port Density
Total port count: 32
Gigabit SFP: 24
Gigabit combo (SFP/RJ-45): 4
10-Gigabit SFP+: 4

Performance
Switching capacity (Gbps): 136
Forwarding rate (Mpps): 101.1
Packet buffer (byte): 4 MB
MAC address table: 32K
L3 forwarding table: Max. 8K IPv4 entries; Max. 4K IPv6 entries
Routing table: 12K
IP interface: 256
Flash/RAM: 64 MB/1 GB

Power
Input: 100 to 240V AC, 50/60 Hz
Max. power consumption (watt): 60.1

Physical Specifications
Item:
– Dimensions (WxDxH)(mm/in.) 441 x 270 x 44/ 17.36 x 10.63 x 1.73
– Weight (kg/lb.) 4.21/9.28
Packing:
– Dimensions (WxDxH)(mm/in.) 616 x 355 x 107/ 24.25 x 13.98 x 4.21
– Weight (kg/lb.) 5.83/12.85

Environmental Specifications
Operating:
– Temperature 0°C to 50°C/32°F to 122°F
– Humidity 10% to 90% (non-condensing)
Storage:
– Temperature -40°C to 70°C/-40°F to 158°F
– Humidity 10% to 90% (non-condensing)
MTBF (hr): 794,270.06
Heat dissipation (BTU/hr): 204.94
Acoustic noise @ 25°C (dBA): 43.1
